CTrajectoryProblem Class Reference

#include <CTrajectoryProblem.h>

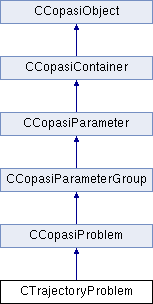

Inheritance diagram for CTrajectoryProblem:

List of all members.

Public Member Functions
	CTrajectoryProblem (const CCopasiContainer *pParent=NULL)
	CTrajectoryProblem (const CTrajectoryProblem &src, const CCopasiContainer *pParent=NULL)
	~CTrajectoryProblem ()
virtual bool	elevateChildren ()
void	setStepNumber (const unsigned C_INT32 &stepNumber)
const unsigned C_INT32 &	getStepNumber () const
void	setStepSize (const C_FLOAT64 &stepSize)
const C_FLOAT64 &	getStepSize () const
void	setDuration (const C_FLOAT64 &duration)
const C_FLOAT64 &	getDuration () const
void	setOutputStartTime (const C_FLOAT64 &endTime)
const C_FLOAT64 &	getOutputStartTime () const
void	setTimeSeriesRequested (bool flag)
bool	timeSeriesRequested () const
void	load (CReadConfig &configBuffer, CReadConfig::Mode mode=CReadConfig::NEXT)

---

Detailed Description

CTrajectoryProblem class. This class describes the trajectory problem, i.e., it allows to specify for example initial conditions and number of steps.

Created for Copasi by Stefan Hoops 2002

---

Constructor & Destructor Documentation

CTrajectoryProblem::CTrajectoryProblem

(

const CCopasiContainer *

pParent = NULL

)

The initial state, i.e., the starting conditions of the trajectroy. The final state of the trajectory at time EndTime Default constructor.

Parameters:

const

CCopasiContainer * pParent (default: NULL)

CTrajectoryProblem class. This class describes the trajectory problem, i.e., it allows to specify for example initial conditions and number of steps.

Created for COPASI by Stefan Hoops 2002 Default constructor.

CTrajectoryProblem::CTrajectoryProblem	(	const CTrajectoryProblem &	src,
		const CCopasiContainer *	pParent = NULL
	)

Copy constructor.

Parameters:

const

CTrajectoryProblem & src CCopasiContainer * pParent (default: NULL)

Copy constructor.

Parameters:

const CTrajectoryProblem &

src

CTrajectoryProblem::~CTrajectoryProblem

(

)

Destructor.

---

Member Function Documentation

bool CTrajectoryProblem::elevateChildren

(

)

[virtual]

This methods must be called to elevate subgroups to derived objects. The default implementation does nothing.

Returns:

bool success

Reimplemented from CCopasiParameterGroup.

const C_FLOAT64 & CTrajectoryProblem::getDuration

(

)

const

Retrieve the end time.

Returns:

"const C_FLOAT64 &" duration

const C_FLOAT64 & CTrajectoryProblem::getOutputStartTime

(

)

const

Retrieve the end time.

Returns:

"const C_FLOAT64 &" endTime

const unsigned C_INT32 & CTrajectoryProblem::getStepNumber

(

)

const

Retrieve the number of time steps the trajectory method should integrate.

Returns:

"const unsigned C_INT32 &" stepNumber

const C_FLOAT64 & CTrajectoryProblem::getStepSize

(

)

const

Retrieve the size a integration step the trajectory method should do.

Returns:

"const C_FLOAT64 &" stepSize

void CTrajectoryProblem::load	(	CReadConfig &	configBuffer,
		CReadConfig::Mode	mode = CReadConfig::NEXT
	)

Load a trajectory problem

Parameters:

CReadConfig &	configBuffer
"CReadConfig::Mode	mode (Default: CReadConfig::NEXT)

void CTrajectoryProblem::setDuration

(

const C_FLOAT64 &

duration

)

Set the end time.

Parameters:

const C_FLOAT64 &

duration bool success

void CTrajectoryProblem::setOutputStartTime

(

const C_FLOAT64 &

endTime

)

Set the end time.

Parameters:

const C_FLOAT64 &

endTime

void CTrajectoryProblem::setStepNumber

(

const unsigned C_INT32 &

stepNumber

)

Set the number of time steps the trajectory method should integrate.

Parameters:

const unsigned C_INT32 &

stepNumber bool success

Set the number of time steps the trajectory method should integrate.

Parameters:

const unsigned C_INT32 &

stepNumber

void CTrajectoryProblem::setStepSize

(

const C_FLOAT64 &

stepSize

)

Set the size a integration step the trajectory method should do.

Parameters:

const C_FLOAT64 &

stepSize bool success

Set the size a integration step the trajectory method should do.

Parameters:

const C_FLOAT64 &

stepSize

void CTrajectoryProblem::setTimeSeriesRequested

(

bool

flag

)

bool CTrajectoryProblem::timeSeriesRequested

(

)

const

---

The documentation for this class was generated from the following files:

• copasi/trajectory/CTrajectoryProblem.h
• copasi/trajectory/CTrajectoryProblem.cpp
