CCopasiParameter Class Reference

#include <CCopasiParameter.h>

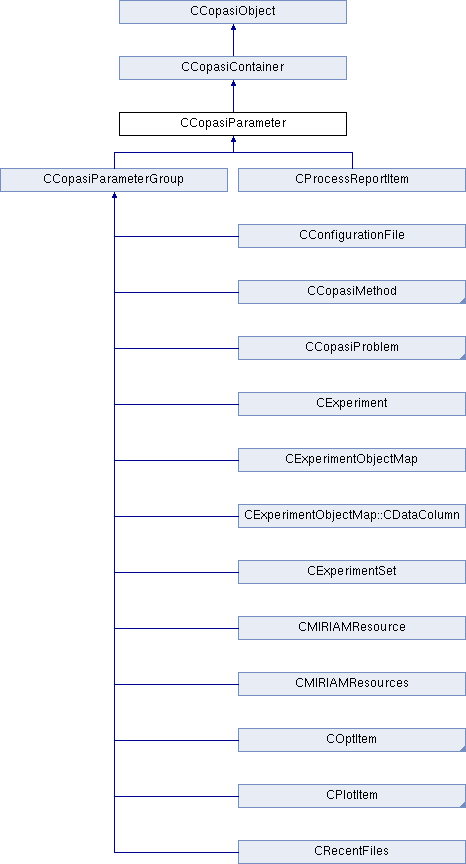

Inheritance diagram for CCopasiParameter:

List of all members.

Classes
union	Value
Public Types
enum	Type {   DOUBLE = 0, UDOUBLE, INT, UINT,   BOOL, GROUP, STRING, CN,   KEY, FILE, EXPRESSION, INVALID }
Public Member Functions
	CCopasiParameter (const CCopasiParameter &src, const CCopasiContainer *pParent=NULL)
	CCopasiParameter (const std::string &name, const Type &type, const void *pValue=NULL, const CCopasiContainer *pParent=NULL, const std::string &objectType="Parameter")
virtual	~CCopasiParameter ()
CCopasiParameter &	operator= (const CCopasiParameter &rhs)
virtual const std::string &	getKey () const
template<class CType >
bool	setValue (const CType &value)
bool	setValue (const std::vector< CCopasiParameter * > &value)
const Value &	getValue () const
Value &	getValue ()
const CCopasiParameter::Type &	getType () const
bool	isValidValue (const C_FLOAT64 &value) const
bool	isValidValue (const C_INT32 &value) const
bool	isValidValue (const unsigned C_INT32 &value) const
bool	isValidValue (const bool &value) const
bool	isValidValue (const std::string &value) const
bool	isValidValue (const CCopasiObjectName &value) const
bool	isValidValue (const std::vector< CCopasiParameter * > &value) const
virtual void	print (std::ostream *ostream) const
virtual void *	getValuePointer () const
virtual std::string	getObjectDisplayName (bool regular=true, bool richtext=false) const
Static Public Attributes
static const std::string	TypeName []
static const char *	XMLType []
Protected Attributes
std::string	mKey
unsigned C_INT32	mSize
Value	mValue
Friends
std::ostream &	operator<< (std::ostream &os, const CCopasiParameter &o)
bool	operator== (const CCopasiParameter &lhs, const CCopasiParameter &rhs)

---

Detailed Description

CCopasiParameter class. This class is used to describe parameters. This class is intended to be used with integration or optimization methods or reactions.

Created for COPASI by Stefan Hoops 2002

---

Member Enumeration Documentation

enum CCopasiParameter::Type

Enumerator:

DOUBLE
UDOUBLE
INT
UINT
BOOL
GROUP
STRING
CN
KEY
FILE
EXPRESSION
INVALID

Reimplemented in CPlotItem, CExperiment, and CScanProblem.

---

Constructor & Destructor Documentation

CCopasiParameter::CCopasiParameter	(	const CCopasiParameter &	src,
		const CCopasiContainer *	pParent = NULL
	)

Copy constructor

Parameters:

const	CCopasiParameter & src
const	CCopasiContainer * pParent (default: NULL)

CCopasiParameter::CCopasiParameter	(	const std::string &	name,
		const Type &	type,
		const void *	pValue = NULL,
		const CCopasiContainer *	pParent = NULL,
		const std::string &	objectType = "Parameter"
	)

Specific constructor

Parameters:

const	string & name
const	CCopasiParameter::Type & type
const	void * pValue (default: NULL)
const	CCopasiContainer * pParent (default: NULL)
const	std::string & objectType (default: "Parameter")

CCopasiParameter::~CCopasiParameter

(

)

[virtual]

Destructor

---

Member Function Documentation

const std::string & CCopasiParameter::getKey

(

)

const [virtual]

Return the key of this model

Returns:

string key

Reimplemented from CCopasiObject.

std::string CCopasiParameter::getObjectDisplayName	(	bool	regular = true,
		bool	richtext = false
	)		const [virtual]

Overload display name. Special treatment for reaction parameters to provide a shorter display.

Reimplemented from CCopasiObject.

const CCopasiParameter::Type & CCopasiParameter::getType

(

void

)

const

Retrieve the type of the parameter.

Returns:

CCopasiParameter::Type & type

Reimplemented in CCopasiMethod, CPlotItem, and CCopasiProblem.

const CCopasiParameter::Value & CCopasiParameter::getValue

(

)

const

Retrieve the private value of the parameter.

Returns:

const CCopasiParameter::Value & Value

CCopasiParameter::Value & CCopasiParameter::getValue

(

)

Retrieve the private value of the parameter.

Returns:

CCopasiParameter::Value & Value

void * CCopasiParameter::getValuePointer

(

)

const [virtual]

Reimplemented from CCopasiObject.

bool CCopasiParameter::isValidValue

(

const C_FLOAT64 &

value

)

const

Check whether the value corresponds to the type

Parameters:

const

C_FLOAT64 & value

Returns:

bool isValidValue

bool CCopasiParameter::isValidValue

(

const C_INT32 &

value

)

const

Check whether the value corresponds to the type

Parameters:

const

C_INT32 & value

Returns:

bool isValidValue

bool CCopasiParameter::isValidValue

(

const unsigned C_INT32 &

value

)

const

Check whether the value corresponds to the type

Parameters:

const

unsigned C_INT32 & value

Returns:

bool isValidValue

bool CCopasiParameter::isValidValue

(

const bool &

value

)

const

Check whether the value corresponds to the type

Parameters:

const

bool & value

Returns:

bool isValidValue

bool CCopasiParameter::isValidValue

(

const std::string &

value

)

const

Check whether the value corresponds to the type

Parameters:

const

std::string & value

Returns:

bool isValidValue

bool CCopasiParameter::isValidValue

(

const CCopasiObjectName &

value

)

const

Check whether the value corresponds to the type

Parameters:

const

CRegisteredObjectName & value

Returns:

bool isValidValue

bool CCopasiParameter::isValidValue

(

const std::vector< CCopasiParameter * > &

value

)

const

Check whether the value corresponds to the type

Parameters:

const

CCopasiParameterGroup::parameterGroup & value

Returns:

bool isValidValue

CCopasiParameter & CCopasiParameter::operator=

(

const CCopasiParameter &

rhs

)

Assignment operator

Parameters:

const

CCopasiParameter & rhs

Returns:

CCopasiParameter & lhs

void CCopasiParameter::print

(

std::ostream *

ostream

)

const [virtual]

This is the output method for any object. The default implementation provided with CCopasiObject uses the ostream operator<< of the object to print the object.To override this default behavior one needs to reimplement the virtual print function.

Parameters:

std::ostream

* ostream

Reimplemented from CCopasiObject.

Reimplemented in CCopasiParameterGroup, COptProblem, CCopasiMethod, CCopasiProblem, CSensProblem, CMCAProblem, CFitProblem, and CCrossSectionProblem.

template<class CType >

bool CCopasiParameter::setValue

(

const CType &

value

)

[inline]

Set the value of the parameter

Parameters:

const

unsigned C_INT32 & value

Returns:

bool isValidValue

bool CCopasiParameter::setValue

(

const std::vector< CCopasiParameter * > &

value

)

Set the value of the parameter when the origin is a parameter group. This function is currently not implemented and creates a fatalError when called.

Parameters:

const

CCopasiParameter::parameterGroup& value

Returns:

bool false

---

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	os,
		const CCopasiParameter &	o
	)		[friend]

Output stream operator

Parameters:

ostream	& os
const	CCopasiParameter & A

Returns:

ostream & os

bool operator==	(	const CCopasiParameter &	lhs,
		const CCopasiParameter &	rhs
	)		[friend]

Comparison operator

Parameters:

const	CCopasiParameter & lhs
const	CCopasiParameter & rhs

Returns:

bool equal

---

Member Data Documentation

std::string CCopasiParameter::mKey [protected]

The key of the parameter.

unsigned C_INT32 CCopasiParameter::mSize [protected]

The size allocated for the value of the parameter.

Value CCopasiParameter::mValue [protected]

A pointer to the value of the parameter.

const std::string CCopasiParameter::TypeName [static]

Initial value:

{
  "float",
  "unsigned float",
  "integer",
  "unsigned integer",
  "bool",
  "group",
  "string",
  "common name",
  "key",
  "file",
  "expression",
  ""
}

String literals for the GUI to display type names of parameters known to COPASI.

CCopasiParameter class. This class is used to describe method paramters. This class is intended to be used with integration or optimization methods.

Created for Copasi by Stefan Hoops 2002

Reimplemented in CPlotItem, CExperiment, and CFitMethod.

const char * CCopasiParameter::XMLType [static]

Initial value:

{
  "float",
  "unsignedFloat",
  "integer",
  "unsignedInteger",
  "bool",
  "group",
  "string",
  "cn",
  "key",
  "file",
  "expression",
  NULL
}

XML type names of parameters known to COPASI.

Reimplemented in CPlotItem, and CExperiment.

---

The documentation for this class was generated from the following files:

• copasi/utilities/CCopasiParameter.h
• copasi/utilities/CCopasiParameter.cpp
