CCopasiObject Class Reference

#include <CCopasiObject.h>

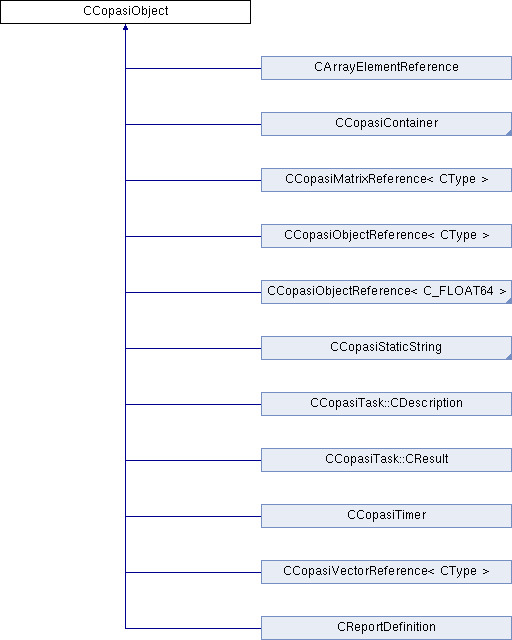

Inheritance diagram for CCopasiObject:

List of all members.

Public Member Functions
	CCopasiObject (const CCopasiObject &src, const CCopasiContainer *pParent=NULL)
virtual	~CCopasiObject ()
virtual void	print (std::ostream *ostream) const
bool	setObjectName (const std::string &name)
const std::string &	getObjectName () const
virtual std::string	getObjectDisplayName (bool regular=true, bool richtext=false) const
const std::string &	getObjectType () const
virtual bool	setObjectParent (const CCopasiContainer *pParent)
CCopasiContainer *	getObjectParent () const
CCopasiDataModel *	getObjectDataModel ()
const CCopasiDataModel *	getObjectDataModel () const
CCopasiContainer *	getObjectAncestor (const std::string &type) const
virtual CCopasiObjectName	getCN () const
virtual const CCopasiObject *	getObject (const CCopasiObjectName &cn) const
void	setDirectDependencies (const std::set< const CCopasiObject * > &directDependencies)
virtual const std::set< const CCopasiObject * > &	getDirectDependencies (const std::set< const CCopasiObject * > &context=std::set< const CCopasiObject * >()) const
void	clearDirectDependencies ()
void	addDirectDependency (const CCopasiObject *pObject)
void	removeDirectDependency (const CCopasiObject *pObject)
void	getAllDependencies (std::set< const CCopasiObject * > &dependencies, const std::set< const CCopasiObject * > &context) const
bool	dependsOn (std::set< const CCopasiObject * > candidates, const std::set< const CCopasiObject * > &context=std::set< const CCopasiObject * >()) const
bool	hasCircularDependencies (std::set< const CCopasiObject * > &candidates, std::set< const CCopasiObject * > &verified, const std::set< const CCopasiObject * > &context) const
virtual std::string	getUnits () const
bool	isContainer () const
bool	isVector () const
bool	isMatrix () const
bool	isNameVector () const
bool	isReference () const
bool	isValueBool () const
bool	isValueInt () const
bool	isValueDbl () const
bool	isNonUniqueName () const
bool	isStaticString () const
bool	isValueString () const
bool	isSeparator () const
bool	isArray () const
bool	isDataModel () const
bool	isRoot () const
virtual void *	getValuePointer () const
virtual const CCopasiObject *	getValueObject () const
virtual const std::string &	getKey () const
void	setObjectValue (const C_FLOAT64 &value)
void	setObjectValue (const C_INT32 &value)
void	setObjectValue (const bool &value)
template<class CType >
void	setUpdateMethod (CType *pType, void(CType::*method)(const C_FLOAT64 &))
template<class CType >
void	setUpdateMethod (CType *pType, void(CType::*method)(const C_INT32 &))
template<class CType >
void	setUpdateMethod (CType *pType, void(CType::*method)(const bool &))
UpdateMethod *	getUpdateMethod () const
bool	hasUpdateMethod () const
template<class CType >
void	setRefresh (CType *pType, void(CType::*method)(void))
void	clearRefresh ()
Refresh *	getRefresh () const
Static Public Member Functions
static std::vector< Refresh * >	buildUpdateSequence (const std::set< const CCopasiObject * > &objects, const std::set< const CCopasiObject * > &uptoDateObjects, const std::set< const CCopasiObject * > &context=std::set< const CCopasiObject * >())
static void	setRenameHandler (CRenameHandler *rh)
Protected Types
enum	Flag {   Container = 0x1, Vector = 0x2, Matrix = 0x4, NameVector = 0x8,   Reference = 0x10, ValueBool = 0x20, ValueInt = 0x40, ValueDbl = 0x80,   NonUniqueName = 0x100, StaticString = 0x200, ValueString = 0x400, Separator = 0x800,   ModelEntity = 0x1000, Array = 0x2000, DataModel = 0x4000, Root = 0x8000,   Gui = 0x10000 }
Protected Member Functions
	CCopasiObject ()
	CCopasiObject (const std::string &name, const CCopasiContainer *pParent=NULL, const std::string &type="CN", const unsigned C_INT32 &flag=0)
Static Protected Attributes
static const CRenameHandler *	smpRenameHandler = NULL
Friends
std::ostream &	operator<< (std::ostream &os, const CCopasiObject &o)

---

Member Enumeration Documentation

enum CCopasiObject::Flag [protected]

Enumerator:

Container
Vector
Matrix
NameVector
Reference
ValueBool
ValueInt
ValueDbl
NonUniqueName
StaticString
ValueString
Separator
ModelEntity
Array
DataModel
Root
Gui

---

Constructor & Destructor Documentation

CCopasiObject::CCopasiObject

(

)

[protected]

CCopasiObject::CCopasiObject	(	const std::string &	name,
		const CCopasiContainer *	pParent = NULL,
		const std::string &	type = "CN",
		const unsigned C_INT32 &	flag = 0
	)		[protected]

CCopasiObject::CCopasiObject	(	const CCopasiObject &	src,
		const CCopasiContainer *	pParent = NULL
	)

CCopasiObject::~CCopasiObject

(

)

[virtual]

---

Member Function Documentation

void CCopasiObject::addDirectDependency

(

const CCopasiObject *

pObject

)

Add a the object to the direct dependencies

Parameters:

const

CCopasiObject * pObject

std::vector< Refresh * > CCopasiObject::buildUpdateSequence	(	const std::set< const CCopasiObject * > &	objects,
		const std::set< const CCopasiObject * > &	uptoDateObjects,
		const std::set< const CCopasiObject * > &	context = std::set< const CCopasiObject * >()
	)		[static]

Build the update sequence for the given list of objects. The resulting sequence takes the dependencies of the objects in consideration. If circular dependencies are detected an exception is thrown

Parameters:

std::set<	const CCopasiObject * > & objects
const	std::set< const CCopasiObject * > & uptoDateObjects
const	std::set< const CCopasiObject * > & context (default: empty set)

Returns:

std::vector< Refresh * > updateSequence

void CCopasiObject::clearDirectDependencies

(

)

Clear the list of direct dependencies.

void CCopasiObject::clearRefresh

(

)

bool CCopasiObject::dependsOn	(	std::set< const CCopasiObject * >	candidates,
		const std::set< const CCopasiObject * > &	context = std::set< const CCopasiObject * >()
	)		const

Check whether the current object depends on any objects in the candidates.

Parameters:

std::set<	const CCopasiObject * > candidates
const	std::set< const CCopasiObject * > & context (default: empty set)

Returns:

bool dependsOn

void CCopasiObject::getAllDependencies	(	std::set< const CCopasiObject * > &	dependencies,
		const std::set< const CCopasiObject * > &	context
	)		const

If called with an empty set of dependencies it retrieves the complete list of all dependencies (including all indirect) of the current object. If called with a non empty set it will only add any dependency and all its dependencies to the list if the dependency is not already among the dependencies

Parameters:

std::set<	const CCopasiObject * > & dependencies
const	std::set< const CCopasiObject * > & context

CCopasiObjectName CCopasiObject::getCN

(

)

const [virtual]

Reimplemented in CArrayElementReference.

const std::set< const CCopasiObject * > & CCopasiObject::getDirectDependencies

(

const std::set< const CCopasiObject * > &

context = std::set< const CCopasiObject * >()

)

const [virtual]

Retrieve the list of direct dependencies

Parameters:

const

std::set< const CCopasiObject * > & context (default empty set)

Returns:

const std::set< const CCopasiObject * > & directDependencies

Reimplemented in CParticleReference, and CConcentrationReference.

const std::string & CCopasiObject::getKey

(

)

const [virtual]

Reimplemented in CModel, CCopasiTask, CEvent, CReportDefinition, CMoiety, CCopasiParameter, CFunctionParameter, CEvaluationTree, CReaction, CModelEntity, CReference, CBiologicalDescription, CCreator, CEventAssignment, CModification, CMIRIAMInfo, CLGraphicalObject, CSlider, and CLayout.

const CCopasiObject * CCopasiObject::getObject

(

const CCopasiObjectName &

cn

)

const [virtual]

Reimplemented in CCopasiVectorN< CType >, CCopasiVectorN< CEvaluationTree >, CCopasiVectorN< CReaction >, CCopasiVectorN< CEventAssignment >, CCopasiVectorN< CFunctionParameter >, CCopasiVectorN< CCopasiTask >, CCopasiVectorN< CPlotSpecification >, CCopasiVectorN< CCompartment >, CCopasiVectorN< CEvent >, CCopasiVectorN< CMetab >, CCopasiVectorN< CModelValue >, CCopasiVectorN< CReportDefinition >, CCopasiVector< CType >, CCopasiVector< CModification >, CCopasiVector< CLMetabGlyph >, CCopasiVector< CLCompartmentGlyph >, CCopasiVector< CEvaluationTree >, CCopasiVector< CReaction >, CCopasiVector< CSlider >, CCopasiVector< CRootFinder >, CCopasiVector< CBiologicalDescription >, CCopasiVector< CEventAssignment >, CCopasiVector< CReference >, CCopasiVector< CFunctionParameter >, CCopasiVector< CCopasiTask >, CCopasiVector< CLayout >, CCopasiVector< CPlotSpecification >, CCopasiVector< CLMetabReferenceGlyph >, CCopasiVector< CMoiety >, CCopasiVector< CCompartment >, CCopasiVector< CAssignment >, CCopasiVector< CChemEqElement >, CCopasiVector< CEvent >, CCopasiVector< CLReactionGlyph >, CCopasiVector< CMathEvent >, CCopasiVector< CMetab >, CCopasiVector< CModelValue >, CCopasiVector< CPlotItem >, CCopasiVector< CCopasiDataModel >, CCopasiVector< CFittingPoint >, CCopasiVector< CLTextGlyph >, CCopasiVector< CReportDefinition >, CCopasiVector< CCreator >, CCopasiVector< CMetabOld >, CCopasiVector< CLGraphicalObject >, CArrayAnnotation, and CCopasiContainer.

CCopasiContainer * CCopasiObject::getObjectAncestor

(

const std::string &

type

)

const

CCopasiDataModel * CCopasiObject::getObjectDataModel

(

)

Returns a pointer to the CCopasiDataModel the element belongs to. If there is no instance of CCopasiDataModel in the ancestor tree, NULL is returned.

const CCopasiDataModel * CCopasiObject::getObjectDataModel

(

)

const

Returns a const pointer to the CCopasiDataModel the element belongs to. If there is no instance of CCopasiDataModel in the ancestor tree, NULL is returned.

std::string CCopasiObject::getObjectDisplayName	(	bool	regular = true,
		bool	richtext = false
	)		const [virtual]

Reimplemented in CCopasiParameter, CArrayAnnotation, CEvent, CMetab, CReaction, CArrayElementReference, CCopasiObjectReference< CType >, CCopasiObjectReference< C_FLOAT64 >, CCopasiReportSeparator, and CCopasiStaticString.

const std::string & CCopasiObject::getObjectName

(

)

const

CCopasiContainer * CCopasiObject::getObjectParent

(

)

const

const std::string & CCopasiObject::getObjectType

(

)

const

Refresh * CCopasiObject::getRefresh

(

)

const

std::string CCopasiObject::getUnits

(

)

const [virtual]

Retrieve the units of the object.

Returns:

std::string units

Reimplemented in CCopasiContainer.

UpdateMethod * CCopasiObject::getUpdateMethod

(

)

const

Reimplemented in COptItem, and CFitItem.

const CCopasiObject * CCopasiObject::getValueObject

(

)

const [virtual]

Reimplemented in CCopasiMatrixReference< CType >, CCopasiVectorReference< CType >, CModelEntity, CMetab, CArrayElementReference, CCopasiObjectReference< CType >, CCopasiObjectReference< C_FLOAT64 >, and CCopasiContainer.

void * CCopasiObject::getValuePointer

(

)

const [virtual]

Reimplemented in CCopasiMatrixReference< CType >, CCopasiParameter, CCopasiVectorReference< CType >, CModelEntity, CMetab, CCopasiTimer, CArrayElementReference, CCopasiObjectReference< CType >, and CCopasiObjectReference< C_FLOAT64 >.

bool CCopasiObject::hasCircularDependencies	(	std::set< const CCopasiObject * > &	candidates,
		std::set< const CCopasiObject * > &	verified,
		const std::set< const CCopasiObject * > &	context
	)		const

If called with an empty set it will check whether the current object and all its dependencies (including all indirect) form a circular dependency. If called with a non empty set it check whether the candidates plus the current object and all its dependencies form a circular dependency.

Parameters:

std::set<	const CCopasiObject * > & dependencies
std::set<	const CCopasiObject * > & verified
const	std::set< const CCopasiObject * > & context

Returns:

bool hasCircularDependencies

bool CCopasiObject::hasUpdateMethod

(

)

const

bool CCopasiObject::isArray

(

)

const

bool CCopasiObject::isContainer

(

)

const

Comparison operator which can be used to sort objects based on their dependencies If the object *lhs is a dependency of *rhs and must be evaluated first the operator return true.

Parameters:

const	CCopasiObject * lhs
const	CCopasiObject * rhs

Returns:

bool isLess

bool CCopasiObject::isDataModel

(

)

const

bool CCopasiObject::isMatrix

(

)

const

bool CCopasiObject::isNameVector

(

)

const

bool CCopasiObject::isNonUniqueName

(

)

const

bool CCopasiObject::isReference

(

)

const

bool CCopasiObject::isRoot

(

)

const

bool CCopasiObject::isSeparator

(

)

const

bool CCopasiObject::isStaticString

(

)

const

bool CCopasiObject::isValueBool

(

)

const

bool CCopasiObject::isValueDbl

(

)

const

bool CCopasiObject::isValueInt

(

)

const

bool CCopasiObject::isValueString

(

)

const

bool CCopasiObject::isVector

(

)

const

void CCopasiObject::print

(

std::ostream *

ostream

)

const [virtual]

This is the output method for any object. The default implementation provided with CCopasiObject uses the ostream operator<< of the object to print the object.To override this default behavior one needs to reimplement the virtual print function.

Parameters:

std::ostream

* ostream

Reimplemented in CCopasiParameterGroup, COptProblem, CArrayAnnotation, CCopasiParameter, CEigen, CCopasiVectorReference< CType >, CCopasiMethod, CLReactionGlyph, CCopasiProblem, CLTextGlyph, CCopasiTask::CResult, CSensProblem, CSteadyStateTask, CCopasiTask::CDescription, CLGraphicalObject, CLMetabReferenceGlyph, CLayout, CMCAProblem, CFitProblem, CCrossSectionProblem, CLCompartmentGlyph, CSensTask, CCrossSectionTask, CArrayElementReference, CCopasiTimer, CCopasiObjectReference< CType >, CCopasiObjectReference< C_FLOAT64 >, CLMetabGlyph, and CCopasiStaticString.

void CCopasiObject::removeDirectDependency

(

const CCopasiObject *

pObject

)

Remove an object from the direct dependencies

Parameters:

const

CCopasiObject * pObject

void CCopasiObject::setDirectDependencies

(

const std::set< const CCopasiObject * > &

directDependencies

)

Set the direct dependencies

Parameters:

const

std::set< const CCopasiObject * > & directDependencies

bool CCopasiObject::setObjectName

(

const std::string &

name

)

Set the name of the object. Note: An attempt set the name to "" results in the name being set to "No Name".

Parameters:

const

std::string & name

Returns:

success

bool CCopasiObject::setObjectParent

(

const CCopasiContainer *

pParent

)

[virtual]

Reimplemented in CEvent, CModelEntity, CMetab, CReaction, and CEventAssignment.

void CCopasiObject::setObjectValue

(

const C_FLOAT64 &

value

)

void CCopasiObject::setObjectValue

(

const C_INT32 &

value

)

void CCopasiObject::setObjectValue

(

const bool &

value

)

template<class CType >

void CCopasiObject::setRefresh	(	CType *	pType,
		void(CType::*)(void)	method
	)		[inline]

static void CCopasiObject::setRenameHandler

(

CRenameHandler *

rh

)

[inline, static]

template<class CType >

void CCopasiObject::setUpdateMethod	(	CType *	pType,
		void(CType::*)(const C_FLOAT64 &)	method
	)		[inline]

template<class CType >

void CCopasiObject::setUpdateMethod	(	CType *	pType,
		void(CType::*)(const C_INT32 &)	method
	)		[inline]

template<class CType >

void CCopasiObject::setUpdateMethod	(	CType *	pType,
		void(CType::*)(const bool &)	method
	)		[inline]

---

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	os,
		const CCopasiObject &	o
	)		[friend]

---

Member Data Documentation

const CRenameHandler * CCopasiObject::smpRenameHandler = NULL [static, protected]

---

The documentation for this class was generated from the following files:

• copasi/report/CCopasiObject.h
• copasi/report/CCopasiObject.cpp
