CEvaluationTree Class Reference

#include <CEvaluationTree.h>

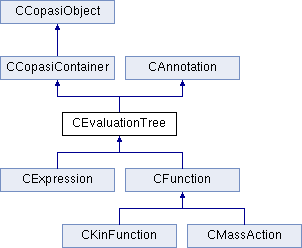

Inheritance diagram for CEvaluationTree:

List of all members.

Public Types
enum	Type {   Function = 0, MassAction, PreDefined, UserDefined,   Expression }
Public Member Functions
	CEvaluationTree (const std::string &name="NoName", const CCopasiContainer *pParent=NULL, const Type &type=Function)
	CEvaluationTree (const CEvaluationTree &src, const CCopasiContainer *pParent=NULL)
virtual	~CEvaluationTree ()
const CEvaluationTree::Type &	getType () const
const std::string &	getKey () const
bool	setRoot (CEvaluationNode *pRootNode)
bool	setTree (const ASTNode &pRootNode)
virtual ASTNode *	toAST (const CCopasiDataModel *pDataModel) const
virtual bool	setInfix (const std::string &infix)
virtual bool	compile ()
bool	isUsable () const
bool	isBoolean () const
const std::string &	getInfix () const
std::string::size_type	getErrorPosition () const
const std::vector < CEvaluationNode * > &	getNodeList () const
virtual unsigned C_INT32	getVariableIndex (const std::string &name) const
virtual const C_FLOAT64 &	getVariableValue (const unsigned C_INT32 &index) const
CEvaluationNode *	getRoot ()
const CEvaluationNode *	getRoot () const
bool	updateTree ()
void	setSBMLId (const std::string &id)
const std::string &	getSBMLId () const
bool	hasCircularDependency () const
bool	dependsOnTree (const std::string &name) const
std::set< const CCopasiObject * >	getDeletedObjects () const
bool	calls (std::set< std::string > &list) const
Static Public Member Functions
static CEvaluationTree *	create (CEvaluationTree::Type type)
static CEvaluationTree *	copy (const CEvaluationTree &src)
static CEvaluationNode *	convertASTNode (const ASTNode &node)
static bool	completeEvaluationTreeList (std::vector< CEvaluationTree * > &list, const unsigned C_INT32 &added=0)
Public Attributes
std::string	mSBMLId
Static Public Attributes
static const std::string	TypeName []
static const char *	XMLType []
Protected Member Functions
void	setType (const CEvaluationTree::Type &type)
bool	parse ()
bool	compileNodes ()
Protected Attributes
CEvaluationTree::Type	mType
std::string	mInfix
bool	mUsable
std::vector< CEvaluationNode * > *	mpNodeList
CEvaluationNode *	mpRoot
C_FLOAT64	mValue
bool	mBooleanRequired

---

Member Enumeration Documentation

enum CEvaluationTree::Type

The valid types of a function

Enumerator:

Function
MassAction
PreDefined
UserDefined
Expression

---

Constructor & Destructor Documentation

CEvaluationTree::CEvaluationTree	(	const std::string &	name = "NoName",
		const CCopasiContainer *	pParent = NULL,
		const Type &	type = Function
	)

Default constructor

Parameters:

const	std::string & name (default: "NoName")
const	CCopasiContainer * pParent (default: NULL)
const	CEvaluationTree::Type & type (default: Function)

CEvaluationTree::CEvaluationTree	(	const CEvaluationTree &	src,
		const CCopasiContainer *	pParent = NULL
	)

Copy constructor

Parameters:

const	CEvaluationTree & src
const	CCopasiContainer * pParent (default: NULL)

CEvaluationTree::~CEvaluationTree

(

)

[virtual]

Destructor

---

Member Function Documentation

bool CEvaluationTree::calls

(

std::set< std::string > &

list

)

const

Check whether the evaluation tree calls any tree in the list

Parameters:

std::set<

std::string > & list

Returns:

bool calls

bool CEvaluationTree::compile

(

)

[virtual]

Compile the evaluation tree.

Reimplemented in CMassAction.

bool CEvaluationTree::compileNodes

(

)

[protected]

Compile the individual nodes.

Returns:

bool success

bool CEvaluationTree::completeEvaluationTreeList	(	std::vector< CEvaluationTree * > &	list,
		const unsigned C_INT32 &	added = 0
	)		[static]

Complete the list of evaluation tree such that all called trees are includes.

Parameters:

std::vector<	CEvaluationTree * > & list
const	unsigned C_INT32 & added (Default: list.size())

Returns:

bool success

CEvaluationNode * CEvaluationTree::convertASTNode

(

const ASTNode &

node

)

[static]

Converts an SBML ASTNode to the corresponding CEvaluationNode tree.

Parameters:

const

ASTNode& node

Returns:

CEvaluationNode*

CEvaluationTree * CEvaluationTree::copy

(

const CEvaluationTree &

src

)

[static]

Copy an EvaluationTree of the specified type. Note: the returned object has to be released after use with delete.

Parameters:

const

EvaluationTree & src

Returns:

EvaluationTree * pEvaluationTree

CEvaluationTree * CEvaluationTree::create

(

CEvaluationTree::Type

type

)

[static]

Create an EvaluationTree of the specified type. Note: the returned object has to be released after use with delete.

Parameters:

CEvaluationTree::Type

type

Returns:

EvaluationTree * pEvaluationTree

bool CEvaluationTree::dependsOnTree

(

const std::string &

name

)

const

Checks whether the tree has a call node referring to the expression with the given name

Parameters:

const

std::string & name

Returns:

bool dependsOn

std::set< const CCopasiObject * > CEvaluationTree::getDeletedObjects

(

)

const

Retrieve the list of deleted objects.

Returns:

std::set< const CCopasiObject * > deletedObjects

std::string::size_type CEvaluationTree::getErrorPosition

(

)

const

Retrieve the position of the error in the string description. std::string::npos indicates no error.

Returns:

std::string::size_type errorPosition

const std::string & CEvaluationTree::getInfix

(

)

const

Retrieve the infix description of the tree

Returns:

const std::string & infix

const std::string & CEvaluationTree::getKey

(

)

const [virtual]

Retrieves the key of the EvaluationTree

Returns:

const std::string & key

Reimplemented from CCopasiObject.

const std::vector< CEvaluationNode * > & CEvaluationTree::getNodeList

(

)

const

Retrieve the list of nodes

Returns:

const std::vector< CEvaluationNode * > & nodeList;

CEvaluationNode * CEvaluationTree::getRoot

(

)

Returns the root node of the tree.

const CEvaluationNode * CEvaluationTree::getRoot

(

)

const

Returns the root node of the tree.

const std::string & CEvaluationTree::getSBMLId

(

)

const

Returns a reference to the SBML Id.

const CEvaluationTree::Type & CEvaluationTree::getType

(

)

const

Retrieves the type of the function

Returns:

const CEvaluationTree::Type & type

unsigned C_INT32 CEvaluationTree::getVariableIndex

(

const std::string &

name

)

const [virtual]

Retrieve the index to the value of the named variable.

Parameters:

const

std::string & name

Returns:

unsigned C_INT32

Reimplemented in CFunction.

const C_FLOAT64 & CEvaluationTree::getVariableValue

(

const unsigned C_INT32 &

index

)

const [virtual]

Retrieve the value of the indexed variable

Parameters:

const

unsigned C_INT32 & index

Returns:

const C_FLOAT64 & variableValue

Reimplemented in CFunction.

bool CEvaluationTree::hasCircularDependency

(

)

const

Check whether the the tree has circular dependencies.

Returns:

bool hasCircularDependency

bool CEvaluationTree::isBoolean

(

)

const

Check whether this function evaluates to a boolean value.

Returns:

bool isBoolean

bool CEvaluationTree::isUsable

(

)

const

Check whether this function is usable, i.e., properly defined

Returns:

bool isUsable

bool CEvaluationTree::parse

(

)

[protected]

Parse the description

Returns:

bool success

bool CEvaluationTree::setInfix

(

const std::string &

infix

)

[virtual]

Set the infix description of the tree and compile it.

Parameters:

const

std::string & infix

Returns:

bool success

Reimplemented in CMassAction, CExpression, and CFunction.

bool CEvaluationTree::setRoot

(

CEvaluationNode *

pRootNode

)

Sets the root node of the tree.

Parameters:

CEvaluationNode*

root node of the tree

Returns:

bool success

void CEvaluationTree::setSBMLId

(

const std::string &

id

)

Sets the SBMLId.

bool CEvaluationTree::setTree

(

const ASTNode &

pRootNode

)

Sets the complete tree from an SBML ASTNode.

Parameters:

const

ASTNode& root node of the tree

Returns:

bool success

void CEvaluationTree::setType

(

const CEvaluationTree::Type &

type

)

[protected]

Set the type of the function

Parameters:

const

CEvaluationTree::Type & type

ASTNode * CEvaluationTree::toAST

(

const CCopasiDataModel *

pDataModel

)

const [virtual]

Converts a CEvaluationTree to an ASTNode based tree.

Returns:

ASTNode* root node of the tree.

bool CEvaluationTree::updateTree

(

)

Updates the infix and the nodeList

---

Member Data Documentation

bool CEvaluationTree::mBooleanRequired [protected]

Indicates whether the tree must evaluate to a boolean value.

std::string CEvaluationTree::mInfix [protected]

The infix representation of the expression

std::vector< CEvaluationNode * >* CEvaluationTree::mpNodeList [protected]

A vector of nodes containing the result of parse.

CEvaluationNode* CEvaluationTree::mpRoot [protected]

The root node of the tree.

std::string CEvaluationTree::mSBMLId

The id of the corresponding function in an SBML file. This value is either set upon importing an SBML file, or when the object is first exported to an SBML file.

CEvaluationTree::Type CEvaluationTree::mType [protected]

The type of the function

bool CEvaluationTree::mUsable [protected]

Value indicating whether this functions might be used in a model

C_FLOAT64 CEvaluationTree::mValue [protected]

The last computed value of the tree;

const std::string CEvaluationTree::TypeName [static]

Initial value:

  {"userdefined", "predefined", "predefined", "userdefined", "userdefined", "userdefined", ""}

The string representation of valid types of a function

const char * CEvaluationTree::XMLType [static]

Initial value:

  {"Function", "MassAction", "PreDefined", "UserDefined", "Expression", "Boolean", NULL}

The string representation of valid types of a function

---

The documentation for this class was generated from the following files:

• copasi/function/CEvaluationTree.h
• copasi/function/CEvaluationTree.cpp
