CEvaluationNode Class Reference

#include <CEvaluationNode.h>

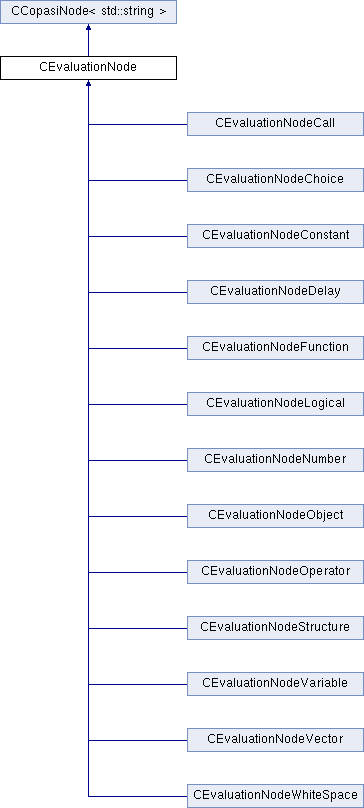

Inheritance diagram for CEvaluationNode:

List of all members.

Classes
class	CPrecedence
Public Types
enum	Type {   INVALID = 0xFF000000, NUMBER = 0x01000000, CONSTANT = 0x02000000, OPERATOR = 0x03000000,   OBJECT = 0x04000000, FUNCTION = 0x05000000, CALL = 0x06000000, STRUCTURE = 0x07000000,   CHOICE = 0x08000000, VARIABLE = 0x09000000, WHITESPACE = 0x0a000000, LOGICAL = 0x0b000000,   MV_FUNCTION = 0x0c000000, VECTOR = 0x0d000000, DELAY = 0x0e000000 }
Public Member Functions
	CEvaluationNode ()
virtual bool	operator!= (const CEvaluationNode &right) const
virtual bool	operator== (const CEvaluationNode &right) const
virtual bool	operator< (const CEvaluationNode &right) const
	CEvaluationNode (const CEvaluationNode &src)
virtual	~CEvaluationNode ()
virtual const C_FLOAT64 &	value () const
virtual bool	compile (const CEvaluationTree *pTree)
virtual std::string	getInfix () const
virtual std::string	getDisplayString (const CEvaluationTree *pTree) const
virtual std::string	getDisplay_C_String (const CEvaluationTree *pTree) const
virtual std::string	getDisplay_MMD_String (const CEvaluationTree *pTree) const
virtual std::string	getDisplay_XPP_String (const CEvaluationTree *pTree) const
const Type &	getType () const
virtual bool	isBoolean () const
virtual ASTNode *	toAST (const CCopasiDataModel *pDataModel) const
CEvaluationNode *	copyNode (CEvaluationNode *child1, CEvaluationNode *child2) const
CEvaluationNode *	copyNode (const std::vector< CEvaluationNode * > &children) const
CEvaluationNode *	copyBranch () const
virtual CEvaluationNode *	simplifyNode (const std::vector< CEvaluationNode * > &children) const
bool	operator< (const CEvaluationNode &rhs)
const C_FLOAT64 *	getValuePointer () const
virtual void	writeMathML (std::ostream &out, const std::vector< std::vector< std::string > > &env, bool expand=true, unsigned C_INT32 l=0) const
void	printRecursively (std::ostream &os, int indent=0) const
void	printRecursively () const
CEvaluationNode *	splitBranch (const CEvaluationNode *splitnode, bool left) const
const CEvaluationNode *	findTopMinus (const std::vector< CFunctionAnalyzer::CValue > &callParameters) const
Static Public Member Functions
static CEvaluationNode *	create (const Type &type, const Data &data)
static Type	subType (const Type &type)
static Type	type (const Type &type)
Protected Member Functions
	CEvaluationNode (const Type &type, const Data &data)
Static Protected Member Functions
static void	replaceRoot (ConverterASTNode *sourceNode)
static void	replaceLog (ConverterASTNode *sourceNode)
Protected Attributes
Type	mType
C_FLOAT64	mValue
class CEvaluationNode::CPrecedence	mPrecedence

---

Detailed Description

This is the base class for nodes used in an evaluation trees

---

Member Enumeration Documentation

enum CEvaluationNode::Type

Enumeration of possible node types.

Enumerator:

INVALID
NUMBER
CONSTANT
OPERATOR
OBJECT
FUNCTION
CALL
STRUCTURE
CHOICE
VARIABLE
WHITESPACE
LOGICAL
MV_FUNCTION
VECTOR
DELAY

---

Constructor & Destructor Documentation

CEvaluationNode::CEvaluationNode

(

)

Default constructor

CEvaluationNode::CEvaluationNode	(	const Type &	type,
		const Data &	data
	)		[protected]

Specific constructor

Parameters:

const	Type & type
const	Data & data

CEvaluationNode::CEvaluationNode

(

const CEvaluationNode &

src

)

Copy constructor

Parameters:

const

CEvaluationNode & src

CEvaluationNode::~CEvaluationNode

(

)

[virtual]

Destructor

---

Member Function Documentation

bool CEvaluationNode::compile

(

const CEvaluationTree *

pTree

)

[virtual]

Compile a node;

Parameters:

const

CEvaluationTree * pTree

Returns:

bool success;

Reimplemented in CEvaluationNodeFunction, CEvaluationNodeLogical, CEvaluationNodeDelay, CEvaluationNodeOperator, CEvaluationNodeCall, CEvaluationNodeChoice, CEvaluationNodeObject, and CEvaluationNodeVariable.

CEvaluationNode * CEvaluationNode::copyBranch

(

)

const

Copy the whole branch with this node as root.

Returns:

CEvaluationNode*, return a pointer to the root of the newly copied branch

CEvaluationNode * CEvaluationNode::copyNode	(	CEvaluationNode *	child1,
		CEvaluationNode *	child2
	)		const

Copy a node and assign new children child1 and child2

Returns:

CEvaluationNode* return a pointer to the new node

CEvaluationNode * CEvaluationNode::copyNode

(

const std::vector< CEvaluationNode * > &

children

)

const

Copy a node and assign new children in the vector

Returns:

CEvaluationNode* return a pointer to the new node

CEvaluationNode * CEvaluationNode::create	(	const Type &	type,
		const Data &	data
	)		[static]

Creates an evaluation node of type with the given data

Parameters:

const	Type & type
const	Data & data

Returns:

CEvaluationNode * evaluationNode

const CEvaluationNode * CEvaluationNode::findTopMinus

(

const std::vector< CFunctionAnalyzer::CValue > &

callParameters

)

const

Find a minus operator in the tree that is suitable for splitting with splitBranch(). Specifically it is a minus operator that is connected with the root node by multiplication or division nodes only. For the division nodes only the left child is considered.

std::string CEvaluationNode::getDisplay_C_String

(

const CEvaluationTree *

pTree

)

const [virtual]

Retrieve the display string of the node and its eventual child nodes in C.

Returns:

const Data & value

Reimplemented in CEvaluationNodeFunction, CEvaluationNodeLogical, CEvaluationNodeOperator, CEvaluationNodeObject, CEvaluationNodeCall, CEvaluationNodeChoice, CEvaluationNodeVector, CEvaluationNodeConstant, and CEvaluationNodeDelay.

std::string CEvaluationNode::getDisplay_MMD_String

(

const CEvaluationTree *

pTree

)

const [virtual]

Retrieve the display string of the node and its eventual child nodes in Berkeley Madonna format.

Returns:

const Data & value

Reimplemented in CEvaluationNodeFunction, CEvaluationNodeLogical, CEvaluationNodeOperator, CEvaluationNodeObject, CEvaluationNodeCall, CEvaluationNodeChoice, CEvaluationNodeVector, CEvaluationNodeConstant, and CEvaluationNodeDelay.

std::string CEvaluationNode::getDisplay_XPP_String

(

const CEvaluationTree *

pTree

)

const [virtual]

Retrieve the display string of the node and its eventual child nodes in XPPAUT format.

Returns:

const Data & value

Reimplemented in CEvaluationNodeFunction, CEvaluationNodeLogical, CEvaluationNodeOperator, CEvaluationNodeObject, CEvaluationNodeCall, CEvaluationNodeChoice, CEvaluationNodeVector, CEvaluationNodeConstant, and CEvaluationNodeDelay.

std::string CEvaluationNode::getDisplayString

(

const CEvaluationTree *

pTree

)

const [virtual]

Retrieve the display string of the node and its eventual child nodes.

Returns:

const Data & value

Reimplemented in CEvaluationNodeFunction, CEvaluationNodeLogical, CEvaluationNodeOperator, CEvaluationNodeObject, CEvaluationNodeCall, CEvaluationNodeChoice, CEvaluationNodeVector, and CEvaluationNodeDelay.

std::string CEvaluationNode::getInfix

(

)

const [virtual]

Retrieve the infix value of the node and its eventual child nodes.

Returns:

const Data & value

Reimplemented in CEvaluationNodeFunction, CEvaluationNodeLogical, CEvaluationNodeDelay, CEvaluationNodeOperator, CEvaluationNodeObject, CEvaluationNodeCall, CEvaluationNodeChoice, and CEvaluationNodeVector.

const CEvaluationNode::Type & CEvaluationNode::getType

(

)

const

Retrieve the type of the node. Note the type combines type and subType information. To Retrieve the type use type(getType()) and to retrieve the subType use subType(getType()).

Returns:

const Type & type.

const C_FLOAT64 * CEvaluationNode::getValuePointer

(

)

const

Retrieve the pointer to the value of the node

Returns:

const C_FLOAT64 * pValue

bool CEvaluationNode::isBoolean

(

)

const [virtual]

Check whether the result is Boolean

Returns:

bool isBoolean

Reimplemented in CEvaluationNodeCall, CEvaluationNodeFunction, CEvaluationNodeLogical, and CEvaluationNodeConstant.

bool CEvaluationNode::operator!=

(

const CEvaluationNode &

right

)

const [virtual]

Unequal operator, compares two CEvaluationNode objects and return true if they are equal.

bool CEvaluationNode::operator<

(

const CEvaluationNode &

right

)

const [virtual]

Less operator, compares two CEvaluationNode objects and return true if the first operand is smaller than the second.

bool CEvaluationNode::operator<

(

const CEvaluationNode &

rhs

)

Comparison operator used to evaluate the precedence of the node. it compares the right precedence of the left node with the left precedence of the right node.

Parameters:

const

CEvaluationNode & rhs;

Returns:

bool isLess

bool CEvaluationNode::operator==

(

const CEvaluationNode &

right

)

const [virtual]

Equals operator, compares two CEvaluationNode objects and return true if they are equal.

void CEvaluationNode::printRecursively	(	std::ostream &	os,
		int	indent = 0
	)		const

void CEvaluationNode::printRecursively

(

)

const

void CEvaluationNode::replaceLog

(

ConverterASTNode *

sourceNode

)

[static, protected]

Replaces all LOG10 (AST_FUNCTION_LOG) nodes that have two children with the quotient of two LOG10 nodes with the base as the argument for the divisor LOG10 node.

void CEvaluationNode::replaceRoot

(

ConverterASTNode *

sourceNode

)

[static, protected]

Replaces all root nodes with the corresponding power operator since COPASI does not have the ROOT function.

CEvaluationNode * CEvaluationNode::simplifyNode

(

const std::vector< CEvaluationNode * > &

children

)

const [virtual]

Create a simplified node from the original node with children child1 and child2 (if not exist, = NULL)

Returns:

CEvaluationNode* return a pointer to the simplified node;

Reimplemented in CEvaluationNodeFunction, and CEvaluationNodeOperator.

CEvaluationNode * CEvaluationNode::splitBranch	(	const CEvaluationNode *	splitnode,
		bool	left
	)		const

Split the tree in two parts at the given splitnode, starting from *this. Returned is the root node of a copy of the tree, including everything above the split node and either the branch below the left child of the split node or the branch below the right child of the split node. The split node itself is not included either case.

CEvaluationNode::Type CEvaluationNode::subType

(

const Type &

type

)

[static]

Retrieve the subtype part of type

Parameters:

const

Type & type

Returns:

Type subType

ASTNode * CEvaluationNode::toAST

(

const CCopasiDataModel *

pDataModel

)

const [virtual]

Create a new invalid ASTNode.

Returns:

ASTNode* return a pointer to the newly created node;

Reimplemented in CEvaluationNodeFunction, CEvaluationNodeLogical, CEvaluationNodeOperator, CEvaluationNodeObject, CEvaluationNodeCall, CEvaluationNodeChoice, CEvaluationNodeVector, CEvaluationNodeConstant, CEvaluationNodeDelay, CEvaluationNodeVariable, CEvaluationNodeNumber, CEvaluationNodeStructure, and CEvaluationNodeWhiteSpace.

CEvaluationNode::Type CEvaluationNode::type

(

const Type &

type

)

[static]

Retrieve the type part of type

Parameters:

const

Type & type

Returns:

Type type

virtual const C_FLOAT64& CEvaluationNode::value

(

)

const [inline, virtual]

Retrieve the value of the node

Returns:

const C_FLOAT64 & value

Reimplemented in CEvaluationNodeFunction, CEvaluationNodeObject, CEvaluationNodeLogical, CEvaluationNodeCall, CEvaluationNodeOperator, CEvaluationNodeChoice, CEvaluationNodeVariable, CEvaluationNodeVector, and CEvaluationNodeDelay.

void CEvaluationNode::writeMathML	(	std::ostream &	out,
		const std::vector< std::vector< std::string > > &	env,
		bool	expand = true,
		unsigned C_INT32	l = 0
	)		const [virtual]

generate display MathML recursively

Reimplemented in CEvaluationNodeFunction, CEvaluationNodeLogical, CEvaluationNodeOperator, CEvaluationNodeCall, CEvaluationNodeObject, CEvaluationNodeChoice, CEvaluationNodeConstant, CEvaluationNodeDelay, CEvaluationNodeVariable, and CEvaluationNodeNumber.

---

Member Data Documentation

class CEvaluationNode::CPrecedence CEvaluationNode::mPrecedence [protected]

Type CEvaluationNode::mType [protected]

The type the node

C_FLOAT64 CEvaluationNode::mValue [protected]

The numerical value of the node

---

The documentation for this class was generated from the following files:

• copasi/function/CEvaluationNode.h
• copasi/function/CEvaluationNode.cpp
