COptItem Class Reference

#include <COptItem.h>

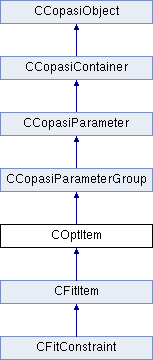

Inheritance diagram for COptItem:

List of all members.

Public Member Functions
	COptItem (const CCopasiContainer *pParent, const std::string &name="OptimizationItem")
	COptItem (const COptItem &src, const CCopasiContainer *pParent=NULL)
	COptItem (const CCopasiParameterGroup &group, const CCopasiContainer *pParent=NULL)
virtual	~COptItem ()
bool	setObjectCN (const CCopasiObjectName &objectCN)
const CCopasiObjectName	getObjectCN () const
const CCopasiObject *	getObject () const
std::string	getObjectDisplayName () const
bool	setLowerBound (const CCopasiObjectName &lowerBound)
const std::string	getLowerBound () const
bool	setUpperBound (const CCopasiObjectName &upperBound)
const std::string	getUpperBound () const
virtual UpdateMethod *	getUpdateMethod () const
virtual bool	isValid () const
virtual bool	compile (const std::vector< CCopasiContainer * > listOfContainer=CCopasiContainer::EmptyList)
virtual C_INT32	checkConstraint () const
virtual C_FLOAT64	getConstraintViolation () const
C_INT32	checkConstraint (const C_FLOAT64 &value) const
bool	checkLowerBound (const C_FLOAT64 &value) const
bool	checkUpperBound (const C_FLOAT64 &value) const
virtual const C_FLOAT64 *	getObjectValue () const
const C_FLOAT64 *	getLowerBoundValue () const
const C_FLOAT64 *	getUpperBoundValue () const
bool	setStartValue (const C_FLOAT64 &value)
const C_FLOAT64 &	getStartValue () const
C_FLOAT64	getRandomValue (CRandom *pRandom=NULL)
Static Public Member Functions
static bool	isValid (CCopasiParameterGroup &group)
Protected Member Functions
	COptItem ()
Protected Attributes
std::string *	mpParmObjectCN
std::string *	mpParmLowerBound
std::string *	mpParmUpperBound
C_FLOAT64 *	mpParmStartValue
const CCopasiObject *	mpObject
UpdateMethod *	mpMethod
const C_FLOAT64 *	mpObjectValue
const CCopasiObject *	mpLowerObject
const C_FLOAT64 *	mpLowerBound
C_FLOAT64	mLowerBound
const CCopasiObject *	mpUpperObject
const C_FLOAT64 *	mpUpperBound
C_FLOAT64	mUpperBound
Static Protected Attributes
static CRandom *	mpRandom = NULL
Friends
std::ostream &	operator<< (std::ostream &os, const COptItem &o)

---

Constructor & Destructor Documentation

COptItem::COptItem

(

)

[protected]

Default constructor

COptItem::COptItem	(	const CCopasiContainer *	pParent,
		const std::string &	name = "OptimizationItem"
	)

Specific constructor

Parameters:

const	CCopasiContainer * pParent
const	std::string & name (default: OptimizationItem)

COptItem::COptItem	(	const COptItem &	src,
		const CCopasiContainer *	pParent = NULL
	)

Copy constructor

Parameters:

const	COptItem & src
const	CCopasiContainer * pParent (default: src data model)

COptItem::COptItem	(	const CCopasiParameterGroup &	group,
		const CCopasiContainer *	pParent = NULL
	)

Specific constructor used for reading COPASI files

Parameters:

const	CCopasiParameterGroup & group
const	CCopasiContainer * pParent (default: group data model)

COptItem::~COptItem

(

)

[virtual]

Destructor

---

Member Function Documentation

C_INT32 COptItem::checkConstraint

(

)

const [virtual]

This functions check whether the current value is within the limits of the optimization item.

Returns:

C_INT32 result (-1: to small, 0: within boundaries, 1 to large)

Reimplemented in CFitConstraint, and CFitItem.

C_INT32 COptItem::checkConstraint

(

const C_FLOAT64 &

value

)

const

This functions check whether the value is within the limits of the optimization item.

Parameters:

const

C_FLOAT64 & value

Returns:

C_INT32 result (-1: to small, 0: within boundaries, 1 to large)

bool COptItem::checkLowerBound

(

const C_FLOAT64 &

value

)

const

Checks whether the value fulfills the lower bound constraint.

Parameters:

const

C_FLOAT64 & value

Returns:

bool fulfills

bool COptItem::checkUpperBound

(

const C_FLOAT64 &

value

)

const

Checks whether the value fulfills the upper bound constraint.

Parameters:

const

C_FLOAT64 & value

Returns:

bool fulfills

bool COptItem::compile

(

const std::vector< CCopasiContainer * >

listOfContainer = CCopasiContainer::EmptyList

)

[virtual]

Compile the optimization item. This function must be called before any of the check functions are called.

Parameters:

const

std::vector< CCopasiContainer * > listOfContainer

Returns:

bool success

Reimplemented in CFitItem.

C_FLOAT64 COptItem::getConstraintViolation

(

)

const [virtual]

Retrieve the magnitude of the constraint violation This is always a positive number

Returns:

C_FLOAT64 constraintViolation;

Reimplemented in CFitConstraint, and CFitItem.

const std::string COptItem::getLowerBound

(

)

const

Retrieve the lower bound.

Returns:

const std::string lowerBound

const C_FLOAT64* COptItem::getLowerBoundValue

(

)

const [inline]

Retrieve the value of the lower bound.

Returns:

const C_FLOAT64 * lowerBoundValue

const CCopasiObject * COptItem::getObject

(

)

const

Retrieve the item object. This may only be called after compile

Returns:

const CCopasiObject *

const CCopasiObjectName COptItem::getObjectCN

(

)

const

Retrieve the object of the optimization item.

Returns:

const CCopasiObjectName objectCN

std::string COptItem::getObjectDisplayName

(

)

const

Retrieve the display name of the optimization item.

Returns:

std::string displayName

const C_FLOAT64 * COptItem::getObjectValue

(

)

const [virtual]

Retrieve the value of the optimization object.

Returns:

const C_FLOAT64 * objectValue

Reimplemented in CFitItem.

C_FLOAT64 COptItem::getRandomValue

(

CRandom *

pRandom = NULL

)

Retrieve a random value in the interval (lower bound, upper bound). Optionally one may provide a random number generator to be used to create the random value.

Parameters:

CRandom

* pRandom (default: NULL)

Returns:

C_FLOAT64 randomValue

const C_FLOAT64 & COptItem::getStartValue

(

)

const

Retrieve the sart value of the optimization object.

Returns:

const C_FLOAT64 & startValue

UpdateMethod * COptItem::getUpdateMethod

(

)

const [virtual]

Retrieve the update method

Returns:

UpdateMethod * pUpdateMethod

Reimplemented from CCopasiObject.

Reimplemented in CFitItem.

const std::string COptItem::getUpperBound

(

)

const

Retrieve the upper bound.

Returns:

const std::string upperBound

const C_FLOAT64* COptItem::getUpperBoundValue

(

)

const [inline]

Retrieve the value of the upper bound.

Returns:

const C_FLOAT64 * upperBoundValue

bool COptItem::isValid

(

)

const [virtual]

Check the validity of the optimization item.

Reimplemented in CFitItem.

bool COptItem::isValid

(

CCopasiParameterGroup &

group

)

[static]

Check whether the group describes a valid optimization item.

Returns:

bool isValid

Reimplemented in CFitItem.

bool COptItem::setLowerBound

(

const CCopasiObjectName &

lowerBound

)

Set the lower bound.

Parameters:

const

CCopasiObjectName & lowerBound

Returns:

bool success

bool COptItem::setObjectCN

(

const CCopasiObjectName &

objectCN

)

Set the object of the optimization item.

Parameters:

const

CCopasiObjectName & objectCN

Returns:

bool success

bool COptItem::setStartValue

(

const C_FLOAT64 &

value

)

Set the value start value.

Parameters:

const

C_FLOAT64 & startValue

Returns:

bool succes

bool COptItem::setUpperBound

(

const CCopasiObjectName &

upperBound

)

Set the upper bound.

Parameters:

const

CCopasiObjectName & upperBound

Returns:

bool success

---

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	os,
		const COptItem &	o
	)		[friend]

Output stream operator

Parameters:

ostream	& os
const	COptItem & A

Returns:

ostream & os

---

Member Data Documentation

C_FLOAT64 COptItem::mLowerBound [protected]

The value of the lower bound (only if not on object)

const C_FLOAT64* COptItem::mpLowerBound [protected]

A pointer to the lower bound value

const CCopasiObject* COptItem::mpLowerObject [protected]

A pointer to the object for the lower bound

UpdateMethod* COptItem::mpMethod [protected]

A pointer to the object update method

const CCopasiObject* COptItem::mpObject [protected]

A pointer to the object

const C_FLOAT64* COptItem::mpObjectValue [protected]

A pointer to the object value

std::string* COptItem::mpParmLowerBound [protected]

A pointer to the value of the CCopasiParameter holding the LowerBound

std::string* COptItem::mpParmObjectCN [protected]

A pointer to the value of the CCopasiParameter holding the ObjectCN

C_FLOAT64* COptItem::mpParmStartValue [protected]

A pointer to the value of the CCopasiParameter holding the start value

std::string* COptItem::mpParmUpperBound [protected]

A pointer to the value of the CCopasiParameter holding the UpperBound

CRandom * COptItem::mpRandom = NULL [static, protected]

A pointer to the random number generator used in randomizeStartValue

const C_FLOAT64* COptItem::mpUpperBound [protected]

A pointer to the upper bound value

const CCopasiObject* COptItem::mpUpperObject [protected]

A pointer to the object for the upper bound

C_FLOAT64 COptItem::mUpperBound [protected]

The value of the upper bound (only if not on object)

---

The documentation for this class was generated from the following files:

• copasi/optimization/COptItem.h
• copasi/optimization/COptItem.cpp
