CListOfLayouts Class Reference

#include <CListOfLayouts.h>

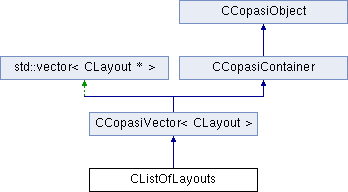

Inheritance diagram for CListOfLayouts:

List of all members.

Public Member Functions
	CListOfLayouts (const std::string &name="ListOfLayouts", const CCopasiContainer *pParent=NULL)
	~CListOfLayouts ()
const std::string &	getKey ()
void	addLayout (CLayout *layout, const std::map< std::string, std::string > &m)
void	exportToSBML (ListOf *lol, std::map< CCopasiObject *, SBase * > &copasimodelmap, const std::map< std::string, const SBase * > &idMap) const

---

Detailed Description

this class stores a list of layouts. It should also keep the maps that translate from sbml IDs to copas keys

---

Constructor & Destructor Documentation

CListOfLayouts::CListOfLayouts	(	const std::string &	name = "ListOfLayouts",
		const CCopasiContainer *	pParent = NULL
	)

CListOfLayouts::~CListOfLayouts

(

)

---

Member Function Documentation

void CListOfLayouts::addLayout	(	CLayout *	layout,
		const std::map< std::string, std::string > &	m
	)

Add a layout to the list. At the moment the map is just ignored. Later it should be stored somewhere

void CListOfLayouts::exportToSBML	(	ListOf *	lol,
		std::map< CCopasiObject *, SBase * > &	copasimodelmap,
		const std::map< std::string, const SBase * > &	idMap
	)		const

This method writes the information of the copasi layout object into the corresponding sbml object. copasimodelmap maps the copasi model objects to libsbml objects. At the moment we don´t assume layout objects are in the copasimodelmap. idSet should contain all sbml IDs that are used in the currently exported model (including the layouts, but not the objects inside the layout).

const std::string & CListOfLayouts::getKey

(

)

---

The documentation for this class was generated from the following files:

• copasi/layout/CListOfLayouts.h
• copasi/layout/CListOfLayouts.cpp
