CSensMethod Class Reference

#include <CSensMethod.h>

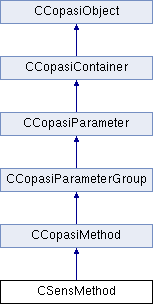

Inheritance diagram for CSensMethod:

List of all members.

Public Member Functions
	CSensMethod (const CSensMethod &src, const CCopasiContainer *pParent=NULL)
	~CSensMethod ()
bool	process (CProcessReport *handler)
bool	initialize (CSensProblem *problem)
virtual bool	isValidProblem (const CCopasiProblem *pProblem)
C_INT32	getNumberOfSubtaskCalculations ()
Static Public Member Functions
static CSensMethod *	createSensMethod (CCopasiMethod::SubType subType=CCopasiMethod::sensMethod)
Protected Member Functions
	CSensMethod (CCopasiMethod::SubType subType, const CCopasiContainer *pParent=NULL)
bool	calculate_one_level (unsigned C_INT32 level, CCopasiArray &result)
bool	do_target_calculation (CCopasiArray &result, bool first)
C_FLOAT64	do_variation (CCopasiObject *variable)
void	setValue (CCopasiObject *variable, C_FLOAT64 value)
void	calculate_difference (unsigned C_INT32 level, const C_FLOAT64 &delta, CCopasiArray &result, CCopasiArray::index_type &resultindex)
void	do_scaling ()
void	scaling_targetfunction (const C_FLOAT64 &factor, CCopasiArray::index_type &resultindex)
void	scaling_variables (C_INT32 level, const C_FLOAT64 &factor, CCopasiArray::index_type &resultindex)
void	do_collapsing ()
C_FLOAT64	do_collapsing_innerloop (CCopasiArray::index_type &fullindex)
Protected Attributes
CSensProblem *	mpProblem
std::vector< CSensMethodLocalData >	mLocalData
std::vector< CCopasiObject * >	mTargetfunctionPointers
CCopasiTask *	mpSubTask
std::vector< Refresh * >	mInitialRefreshes
C_FLOAT64 *	mpDeltaFactor
C_FLOAT64 *	mpMinDelta
CProcessReport *	mpProgressBar
unsigned C_INT32	mProgressHandler
C_INT32	mProgress

---

Constructor & Destructor Documentation

CSensMethod::CSensMethod	(	CCopasiMethod::SubType	subType,
		const CCopasiContainer *	pParent = NULL
	)		[explicit, protected]

Specific constructor.

Parameters:

CCopasiMethod::SubType	subType
const	CCopasiContainer * pParent (default: NULL)

Default constructor.

CSensMethod::CSensMethod	(	const CSensMethod &	src,
		const CCopasiContainer *	pParent = NULL
	)

Copy constructor.

Parameters:

const CTSSMethod &	src
const	CCopasiContainer * pParent (default: NULL)

Copy constructor.

Parameters:

const CSensMethod &

src

CSensMethod::~CSensMethod

(

)

Destructor.

---

Member Function Documentation

void CSensMethod::calculate_difference	(	unsigned C_INT32	level,
		const C_FLOAT64 &	delta,
		CCopasiArray &	result,
		CCopasiArray::index_type &	resultindex
	)		[protected]

bool CSensMethod::calculate_one_level	(	unsigned C_INT32	level,
		CCopasiArray &	result
	)		[protected]

CSensMethod * CSensMethod::createSensMethod

(

CCopasiMethod::SubType

subType = CCopasiMethod::sensMethod

)

[static]

Create a trajectory method. Note: the returned object has to be released after use with delete

CSensMethod class.

void CSensMethod::do_collapsing

(

)

[protected]

collapse the first dimension of the scaled result (by calculating the 2-norm over the target functions)

C_FLOAT64 CSensMethod::do_collapsing_innerloop

(

CCopasiArray::index_type &

fullindex

)

[protected]

void CSensMethod::do_scaling

(

)

[protected]

calculate the scaled sensitivities. Calls scaling_variables(). It is assumed that the scaled result array is already of the correct size (this is done in initialize()).

bool CSensMethod::do_target_calculation	(	CCopasiArray &	result,
		bool	first
	)		[protected]

C_FLOAT64 CSensMethod::do_variation

(

CCopasiObject *

variable

)

[protected]

C_INT32 CSensMethod::getNumberOfSubtaskCalculations

(

)

estimate how many calls to the subtask are necessary. Works only after initialize() was called.

bool CSensMethod::initialize

(

CSensProblem *

problem

)

initializes the subtask, creates the internal data structures of the method, resizes the result arrays and creates the array annotations

bool CSensMethod::isValidProblem

(

const CCopasiProblem *

pProblem

)

[virtual]

Check if the method is suitable for this problem

Returns:

bool suitability of the method

Reimplemented from CCopasiMethod.

bool CSensMethod::process

(

CProcessReport *

handler

)

void CSensMethod::scaling_targetfunction	(	const C_FLOAT64 &	factor,
		CCopasiArray::index_type &	resultindex
	)		[protected]

This contains the loop over the target functions for scaling the sensitivities

void CSensMethod::scaling_variables	(	C_INT32	level,
		const C_FLOAT64 &	factor,
		CCopasiArray::index_type &	resultindex
	)		[protected]

This contains the loop over the variables for scaling the sensitivities. Works recursively and calls scaling_targetfunction() in the end.

void CSensMethod::setValue	(	CCopasiObject *	variable,
		C_FLOAT64	value
	)		[protected]

wraps the CCopasiObject::setObjectValue() method so we can add special treatment of concentrations

---

Member Data Documentation

std::vector< Refresh * > CSensMethod::mInitialRefreshes [protected]

std::vector<CSensMethodLocalData> CSensMethod::mLocalData [protected]

C_FLOAT64* CSensMethod::mpDeltaFactor [protected]

C_FLOAT64* CSensMethod::mpMinDelta [protected]

CSensProblem* CSensMethod::mpProblem [protected]

A pointer to the sensitivities problem.

CProcessReport* CSensMethod::mpProgressBar [protected]

C_INT32 CSensMethod::mProgress [protected]

unsigned C_INT32 CSensMethod::mProgressHandler [protected]

CCopasiTask* CSensMethod::mpSubTask [protected]

std::vector<CCopasiObject*> CSensMethod::mTargetfunctionPointers [protected]

---

The documentation for this class was generated from the following files:

• copasi/sensitivities/CSensMethod.h
• copasi/sensitivities/CSensMethod.cpp
