#include <CHybridMethod.h>

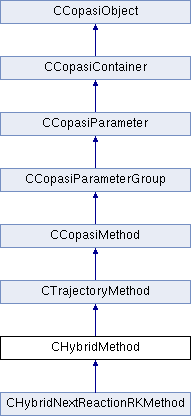

Inheritance diagram for CHybridMethod:

Public Member Functions
	CHybridMethod (const CHybridMethod &src, const CCopasiContainer *pParent=NULL)
	~CHybridMethod ()
virtual bool	elevateChildren ()
virtual Status	step (const double &deltaT)
virtual void	start (const CState *initialState)
virtual bool	isValidProblem (const CCopasiProblem *pProblem)
Static Public Member Functions
static CHybridMethod *	createHybridMethod ()
Protected Types
enum	metabStatus { LOW = 0, HIGH }
Protected Member Functions
	CHybridMethod (const CCopasiContainer *pParent=NULL)
void	initMethod (C_FLOAT64 time)
void	cleanup ()
virtual C_FLOAT64	doSingleStep (C_FLOAT64 currentTime, C_FLOAT64 endTime)=0
void	integrateDeterministicPart (C_FLOAT64 ds)
void	integrateDeterministicPartEuler (C_FLOAT64 ds)
void	rungeKutta (C_FLOAT64 dt)
void	calculateDerivative (std::vector< C_FLOAT64 > &deriv)
void	getState (std::vector< C_FLOAT64 > &target)
void	setState (std::vector< C_FLOAT64 > &source)
void	getStochTimeAndIndex (C_FLOAT64 &ds, C_INT32 &rIndex)
void	fireReaction (C_INT32 rIndex)
void	updatePriorityQueue (C_INT32 rIndex, C_FLOAT64 time)
C_FLOAT64	generateReactionTime (C_INT32 rIndex)
void	calculateAmu (C_INT32 rIndex)
void	updateTauMu (C_INT32 rIndex, C_FLOAT64 time)
void	setupBalances ()
void	setupDependencyGraph ()
void	setupMetab2React ()
void	setupMetab2ReactPlusModifier ()
void	setupMetab2ReactComplete ()
void	setupPartition ()
void	setupPriorityQueue (C_FLOAT64 startTime=0.0)
void	partitionSystem ()
void	insertDeterministicReaction (C_INT32 rIndex)
void	removeDeterministicReaction (C_INT32 rIndex)
std::set< std::string > *	getDependsOn (C_INT32 rIndex)
std::set< std::string > *	getAffects (C_INT32 rIndex)
std::set< C_INT32 > *	getParticipatesIn (C_INT32 rIndex)
void	outputData (std::ostream &os, C_INT32 mode)
void	outputDebug (std::ostream &os, C_INT32 level)
Static Protected Member Functions
static C_INT32	checkModel (CModel *model)
static bool	modelHasAssignments (const CModel *pModel)
Protected Attributes
CVersion	mVersion
CModel *	mpModel
unsigned C_INT32	mNumVariableMetabs
unsigned C_INT32	mFirstMetabIndex
unsigned C_INT32	mMaxSteps
bool	mMaxStepsReached
bool	mUseRandomSeed
unsigned C_INT32	mRandomSeed
C_INT32	mMaxBalance
C_INT32	mMaxIntBeforeStep
bool	mDoCorrection
const CCopasiVectorNS < CReaction > *	mpReactions
CCopasiVector< CMetab > *	mpMetabolites
CMatrix< C_FLOAT64 >	mStoi
std::vector< C_FLOAT64 >	temp
std::vector< C_FLOAT64 >	currentState
std::vector< C_FLOAT64 >	k1
std::vector< C_FLOAT64 >	k2
std::vector< C_FLOAT64 >	k3
std::vector< C_FLOAT64 >	k4
std::vector< CHybridStochFlag >	mReactionFlags
CHybridStochFlag *	mFirstReactionFlag
std::vector< metabStatus >	mMetabFlags
std::vector< std::vector < CHybridBalance > >	mLocalBalances
std::vector< std::vector < CHybridBalance > >	mLocalSubstrates
C_FLOAT64	mLowerStochLimit
C_FLOAT64	mUpperStochLimit
unsigned C_INT32	mPartitioningInterval
unsigned C_INT32	mStepsAfterPartitionSystem
C_FLOAT64	mStepsize
std::vector< std::set< C_INT32 > >	mMetab2React
std::vector< C_FLOAT64 >	mAmu
std::vector< C_FLOAT64 >	mAmuOld
std::set< C_INT32 >	mUpdateSet
CRandom *	mpRandomGenerator
CDependencyGraph	mDG
CIndexedPriorityQueue	mPQ
std::ofstream	mOutputFile
std::string	mOutputFileName
C_INT32	mOutputCounter
bool	mHasAssignments
Friends
CTrajectoryMethod *	CTrajectoryMethod::createTrajectoryMethod (CCopasiMethod::SubType subType, CTrajectoryProblem *pProblem)

Member Enumeration Documentation

enum CHybridMethod::metabStatus [protected]

Status of the metabolites. Particle number can be high or low.

Enumerator:

LOW
HIGH

Constructor & Destructor Documentation

CHybridMethod::CHybridMethod	(	const CHybridMethod &	src,
		const CCopasiContainer *	pParent = `NULL`
	)

Copy constructor

Parameters:

const	CHybridMethod & src
const	CCopasiContainer * pParent (default: NULL)

CHybridMethod::~CHybridMethod ( )

Destructor.

CHybridMethod::CHybridMethod ( const CCopasiContainer * pParent = NULL ) [protected]

Default constructor.

Parameters:

const CCopasiContainer * pParent (default: NULL)

CHybridMethod

This class implements an hybrid algorithm for the simulation of a biochemical system over time.

File name: CHybridMethod.cpp Author: Juergen Pahle Email: juergen.pahle@eml-r.villa-bosch.de

Last change: 14, December 2004

(C) European Media Lab 2003. Default constructor.

Member Function Documentation

void CHybridMethod::calculateAmu ( C_INT32 rIndex ) [protected]

Calculates an amu value for a given reaction.

Parameters:

rIndex A C_INT32 specifying the reaction to be updated

void CHybridMethod::calculateDerivative ( std::vector< C_FLOAT64 > & deriv ) [protected]

Calculates the derivative of the system and writes it into the vector deriv. Length of deriv must be mNumVariableMetabs. CAUTION: Only deterministic reactions are taken into account. That is, this is only the derivative of the deterministic part of the system.

Parameters:

deriv A vector reference of length mNumVariableMetabs, into which the derivative is written

C_INT32 CHybridMethod::checkModel ( CModel * model ) [static, protected]

Test the model if it is proper to perform stochastic simulations on. Several properties are tested (e.g. integer stoichometry, all reactions take place in one compartment only, irreversibility...).

Parameters:

model The model to be checked

Returns:: 1, if hybrid simulation is possible; <0, if an error occured.

Test the model if it is proper to perform stochastic simulations on. Several properties are tested (e.g. integer stoichometry, all reactions take place in one compartment only, irreversibility...).

Returns:: 0, if everything is ok; <0, if an error occured.

void CHybridMethod::cleanup ( ) [protected]

Cleans up memory, etc.

CHybridMethod * CHybridMethod::createHybridMethod ( ) [static]

Creates a HybridMethod adequate for the problem. (only CHybridNextReactionRKMethod so far)

virtual C_FLOAT64 CHybridMethod::doSingleStep	(	C_FLOAT64	currentTime,
		C_FLOAT64	endTime
	)		`[protected, pure virtual]`

Simulates the system over the next interval of time. The current time and the end time of the current step() are given as arguments.

Parameters:

currentTime	A C_FLOAT64 specifying the current time
endTime	A C_FLOAT64 specifying the end time of the step()

Returns:: A C_FLOAT giving the new time

Implemented in CHybridNextReactionRKMethod.

bool CHybridMethod::elevateChildren ( ) [virtual]

This methods must be called to elevate subgroups to derived objects. The default implementation does nothing.

Returns:: bool success

Reimplemented from CCopasiParameterGroup.

void CHybridMethod::fireReaction ( C_INT32 rIndex ) [protected]

Executes the specified reaction in the system once.

Parameters:

rIndex A C_INT32 specifying the index of the reaction, which will be fired.

Executes the specified reaction in the system once.

Parameters:

rIndex	A C_INT32 specifying the index of the reaction, which will be fired.
time	The current time

C_FLOAT64 CHybridMethod::generateReactionTime ( C_INT32 rIndex ) [protected]

Generates a putative reaction time for the given reaction.

Parameters:

rIndex A C_INT32 specifying the index of the reaction

Returns:: A C_FLOAT64 holding the calculated reaction time

std::set< std::string > * CHybridMethod::getAffects ( C_INT32 rIndex ) [protected]

Gets the set of metabolites which change number when a given reaction is executed.

Parameters:

rIndex The index of the reaction being executed.

Returns:: The set of affected metabolites.

std::set< std::string > * CHybridMethod::getDependsOn ( C_INT32 rIndex ) [protected]

Gets the set of metabolites on which a given reaction depends.

Parameters:

rIndex The index of the reaction being executed.

Returns:: The set of metabolites depended on.

std::set< C_INT32 > * CHybridMethod::getParticipatesIn ( C_INT32 rIndex ) [protected]

Gets the set of metabolites, which participate in the given reaction either as substrate, product or modifier.

Parameters:

rIndex The index of the reaction being executed.

Returns:: The set of participating metabolites.

void CHybridMethod::getState ( std::vector< C_FLOAT64 > & target ) [protected]

Gathers the state of the system into the array target. Later on CState should be used for this. Length of the array target must be mNumVariableMetabs.

Parameters:

target A vector reference of length mNumVariableMetabs, into which the state of the system is written

Gathers the state of the system into the array target. Later on CState should be used for this. Length of the array target must be mNumVariableMetabs.

Parameters:

target An array of C_FLOAT64s with length mNumVariableMetabs, into which the state of the system is written

void CHybridMethod::getStochTimeAndIndex	(	C_FLOAT64 &	ds,
		C_INT32 &	rIndex
	)		`[protected]`

Find the reaction index and the reaction time of the stochastic (!) reaction with the lowest reaction time.

Parameters:

ds	A reference to a C_FLOAT64. The putative reaction time for the first stochastic reaction is written into this variable.
rIndex	A reference to a C_INT32. The index of the first stochastic reaction is written into this variable.

void CHybridMethod::initMethod ( C_FLOAT64 start_time ) [protected]

Initializes the solver.

Parameters:

time	the current time

Initializes the solver and sets the model to be used.

Parameters:

model A reference to an instance of a CModel

void CHybridMethod::insertDeterministicReaction ( C_INT32 rIndex ) [protected]

Inserts a new deterministic reaction into the linked list in the vector mReactionFlags.

Parameters:

rIndex A C_INT32 giving the index of the reaction to be inserted into the list of deterministic reactions.

Inserts a new deterministic reaction into the linked list in the array mReactionFlags.

Parameters:

rIndex A C_INT32 giving the index of the reaction to be inserted into the list of deterministic reactions.

void CHybridMethod::integrateDeterministicPart ( C_FLOAT64 dt ) [protected]

Integrates the deterministic reactions of the system over the specified time interval.

Parameters:

ds	A C_FLOAT64 specifying the stepsize.

void CHybridMethod::integrateDeterministicPartEuler ( C_FLOAT64 dt ) [protected]

Integrates the deterministic reactions of the system over the specified time interval.

Parameters:

ds	A C_FLOAT64 specifying the stepsize.

bool CHybridMethod::isValidProblem ( const CCopasiProblem * pProblem ) [virtual]

Check if the method is suitable for this problem

Returns:: bool suitability of the method

Reimplemented from CTrajectoryMethod.

bool CHybridMethod::modelHasAssignments ( const CModel * pModel ) [static, protected]

tests if the model contains a global value with an assignment rule that is used in calculations

void CHybridMethod::outputData	(	std::ostream &	os,
		C_INT32	mode
	)		`[protected]`

Prints out data on standard output.

Prints out data on standard output. Deprecated.

void CHybridMethod::outputDebug	(	std::ostream &	os,
		C_INT32	level
	)		`[protected]`

Prints out various data on standard output for debugging purposes.

void CHybridMethod::partitionSystem ( ) [protected]

Updates the partitioning of the system depending on the particle numbers present.

void CHybridMethod::removeDeterministicReaction ( C_INT32 rIndex ) [protected]

Removes a deterministic reaction from the linked list in the vector mReactionFlags.

Parameters:

rIndex A C_INT32 giving the index of the reaction to be removed from the list of deterministic reactions.

Removes a deterministic reaction from the linked list in the array mReactionFlags.

Parameters:

rIndex A C_INT32 giving the index of the reaction to be removed from the list of deterministic reactions.

void CHybridMethod::rungeKutta ( C_FLOAT64 dt ) [protected]

Does one 4th order RungeKutta step to integrate the system numerically.

Parameters:

dt	A C_FLOAT64 specifying the stepsize
result	A reference to a vector, into which the result, that is the increment vector, will be written

void CHybridMethod::setState ( std::vector< C_FLOAT64 > & source ) [protected]

Writes the state specified in the array source into the model. Length of the vector source must be mNumVariableMetabs. (Number of non-fixed metabolites in the model).

Parameters:

source A vector reference with length mNumVariableMetabs, holding the state of the system to be set in the model

Writes the state specified in the vector source into the model. Length of the vector source must be mNumVariableMetabs. (Number of non-fixed metabolites in the model).

Parameters:

source A vector reference with length mNumVariableMetabs, holding the state of the system to be set in the model

void CHybridMethod::setupBalances ( ) [protected]

Sets up an internal representation of the balances for each reaction. This is done in order to be able to deal with fixed metabolites and to avoid a time consuming search for the indices of metabolites in the model.

void CHybridMethod::setupDependencyGraph ( ) [protected]

Sets up the dependency graph

Sets up the dependency graph.

void CHybridMethod::setupMetab2React ( ) [protected]

Creates for each metabolite a set of reaction indices. If the metabolite participates in a reaction as substrate or product this reaction is added to the corresponding set.

Creates for each metabolite a set of reaction indices. If the metabolite participates in a reaction as substrate or product (that means: balance != 0) this reaction is added to the corresponding set.

void CHybridMethod::setupMetab2ReactComplete ( ) [protected]

Creates for each metabolite a set of reaction indices. Each reaction is dependent on each metabolite resulting in a complete switch.

void CHybridMethod::setupMetab2ReactPlusModifier ( ) [protected]

Creates for each metabolite a set of reaction indices. If the metabolite participates in a reaction as substrate, product or modifier this reaction is added to the corresponding set.

void CHybridMethod::setupPartition ( ) [protected]

Creates an initial partitioning of the system. Deterministic and stochastic reactions are determined. The array mStochReactions is initialized.

Creates an initial partitioning of the system. Deterministic and stochastic reactions are determined. The vector mReactionFlags and the vector mMetabFlags are initialized.

void CHybridMethod::setupPriorityQueue ( C_FLOAT64 startTime = 0.0 ) [protected]

Sets up the priority queue.

Parameters:

startTime The time at which the simulation starts.

void CHybridMethod::start ( const CState * initialState ) [virtual]

This instructs the method to prepare for integration starting with the initialState given.

Parameters:

const CState * initialState

Reimplemented from CTrajectoryMethod.

CTrajectoryMethod::Status CHybridMethod::step ( const double & deltaT ) [virtual]

This instructs the method to calculate a time step of deltaT starting with the current state, i.e., the result of the previous step. The new state (after deltaT) is expected in the current state. The return value is the actual timestep taken.

Parameters:

const double & deltaT

Returns:: Status status

Reimplemented from CTrajectoryMethod.

void CHybridMethod::updatePriorityQueue	(	C_INT32	rIndex,
		C_FLOAT64	time
	)		`[protected]`

Updates the priority queue.

Parameters:

rIndex	A C_INT32 giving the index of the fired reaction
time	A C_FLOAT64 holding the time taken by this reaction

Updates the priority queue.

Parameters:

rIndex	A C_INT32 giving the index of the fired reaction (-1, if no stochastic reaction has fired)
time	A C_FLOAT64 holding the current time

void CHybridMethod::updateTauMu	(	C_INT32	rIndex,
		C_FLOAT64	time
	)		`[protected]`

Updates the putative reaction time of a stochastic reaction in the priority queue. The corresponding amu and amu_old must be set prior to the call of this method.

Parameters:

rIndex	A C_INT32 specifying the index of the reaction
time	A C_FLOAT64 specifying the current time

Updates the putative reaction time of a stochastic reaction in the priority queue. The corresponding amu and amu_old must be set prior to the call of this method.

Parameters:

rIndex A C_INT32 specifying the index of the reaction

Friends And Related Function Documentation

CTrajectoryMethod* CTrajectoryMethod::createTrajectoryMethod	(	CCopasiMethod::SubType	subType,
		CTrajectoryProblem *	pProblem
	)		`[friend]`

Member Data Documentation

std::vector<C_FLOAT64> CHybridMethod::currentState [protected]

std::vector<C_FLOAT64> CHybridMethod::k1 [protected]

std::vector<C_FLOAT64> CHybridMethod::k2 [protected]

std::vector<C_FLOAT64> CHybridMethod::k3 [protected]

std::vector<C_FLOAT64> CHybridMethod::k4 [protected]

std::vector<C_FLOAT64> CHybridMethod::mAmu [protected]

The propensities of the stochastic reactions.

std::vector<C_FLOAT64> CHybridMethod::mAmuOld [protected]

CDependencyGraph CHybridMethod::mDG [protected]

The graph of reactions and their dependent reactions. When a reaction is executed, the propensities for each of its dependents must be updated.

bool CHybridMethod::mDoCorrection [protected]

indicates if the correction N^2 -> N*(N-1) should be performed

unsigned C_INT32 CHybridMethod::mFirstMetabIndex [protected]

index of the first metab in CState

CHybridStochFlag* CHybridMethod::mFirstReactionFlag [protected]

bool CHybridMethod::mHasAssignments [protected]

Indicates whether the model has global quantities with assignment rules. If it has, we will use a less efficient way to update the model state to handle this.

std::vector<std::vector <CHybridBalance> > CHybridMethod::mLocalBalances [protected]

Internal representation of the balances of each reaction. The index of each metabolite in the reaction is provided.

std::vector<std::vector <CHybridBalance> > CHybridMethod::mLocalSubstrates [protected]

Internal representation of the substrates of each reaction. The index of each substrate-metabolite is provided.

C_FLOAT64 CHybridMethod::mLowerStochLimit [protected]

Limit for particle numbers. If a particle number is < StochLimit the corresponding reactions must be simulated stochastically.

C_INT32 CHybridMethod::mMaxBalance [protected]

maximal increase of a particle number in one step.

C_INT32 CHybridMethod::mMaxIntBeforeStep [protected]

This is set to maxint - mMaxSteps*mMaxBalance

unsigned C_INT32 CHybridMethod::mMaxSteps [protected]

Max number of doSingleStep() per step()

bool CHybridMethod::mMaxStepsReached [protected]

std::vector<std::set <C_INT32> > CHybridMethod::mMetab2React [protected]

Vector of relations between metabolites to reactions.

std::vector<metabStatus> CHybridMethod::mMetabFlags [protected]

Vector holding information on the status of metabolites. They can have low or high particle numbers.

unsigned C_INT32 CHybridMethod::mNumVariableMetabs [protected]

Dimension of the system. Total number of metabolites.

C_INT32 CHybridMethod::mOutputCounter [protected]

Output counter.

std::ofstream CHybridMethod::mOutputFile [protected]

File output stream to write data.

std::string CHybridMethod::mOutputFileName [protected]

Output filename.

unsigned C_INT32 CHybridMethod::mPartitioningInterval [protected]

The system gets repartitioned after this number of elementary steps.

CCopasiVector<CMetab>* CHybridMethod::mpMetabolites [protected]

A pointer to the metabolites of the model.

CModel* CHybridMethod::mpModel [protected]

Pointer to the model

CIndexedPriorityQueue CHybridMethod::mPQ [protected]

The set of putative stochastic (!) reactions and associated times at which each reaction occurs. This is represented as a priority queue, sorted by the reaction time. This heap changes dynamically as stochastic reactions become deterministic (delete this reaction from the queue) or vice versa (insert a new reaction into the queue).

CRandom* CHybridMethod::mpRandomGenerator [protected]

The random number generator.

const CCopasiVectorNS<CReaction>* CHybridMethod::mpReactions [protected]

A pointer to the reactions of the model.

unsigned C_INT32 CHybridMethod::mRandomSeed [protected]

The random seed to use.

std::vector<CHybridStochFlag> CHybridMethod::mReactionFlags [protected]

Vector to hold information about how many metabolites of a reaction have low particle numbers. If no metabolite of one reaction has low particle numbers this reaction will be simulated det.

unsigned C_INT32 CHybridMethod::mStepsAfterPartitionSystem [protected]

Number of elementary steps after the last partitioning.

C_FLOAT64 CHybridMethod::mStepsize [protected]

Stepsize for the rungeKutta steps of the numerical integrator.

CMatrix<C_FLOAT64> CHybridMethod::mStoi [protected]

The stoichometry matrix of the model.

std::set<C_INT32> CHybridMethod::mUpdateSet [protected]

Set of the reactions, which must be updated.

C_FLOAT64 CHybridMethod::mUpperStochLimit [protected]

bool CHybridMethod::mUseRandomSeed [protected]

Specifies if the mRandomSeed should be used. otherwise a randomly chosen seed is used.

CVersion CHybridMethod::mVersion [protected]
