CTrajectoryMethod Class Reference

#include <CTrajectoryMethod.h>

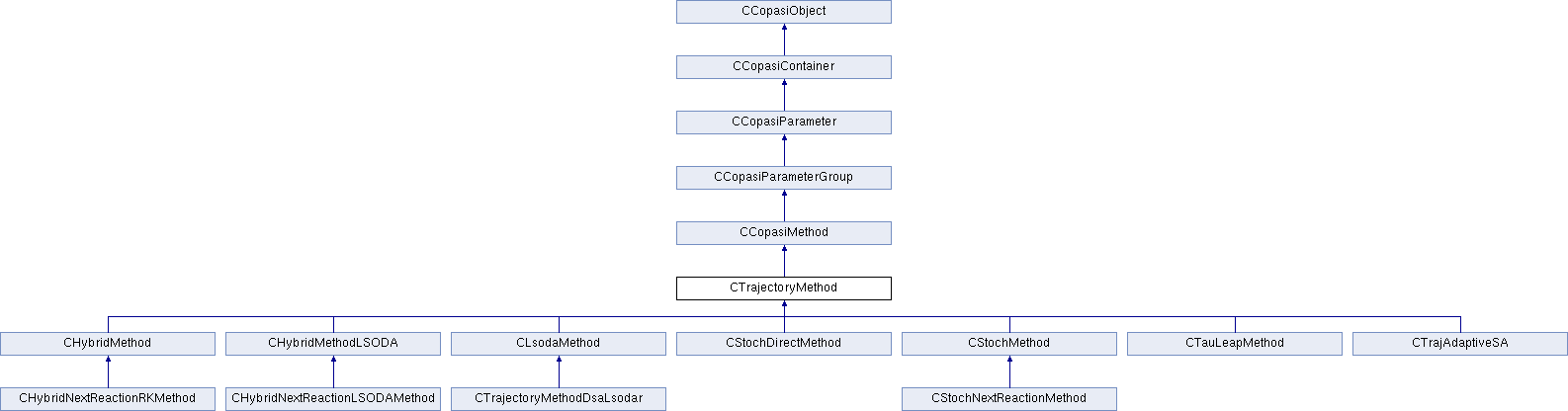

Inheritance diagram for CTrajectoryMethod:

List of all members.

Public Types
enum	Status { FAILURE = -1, NORMAL = 0, ROOT = 1 }
Public Member Functions
	CTrajectoryMethod (const CTrajectoryMethod &src, const CCopasiContainer *pParent=NULL)
	~CTrajectoryMethod ()
void	setCurrentState (CState *currentState)
void	setProblem (CTrajectoryProblem *problem)
virtual void	stateChanged ()
virtual Status	step (const double &deltaT)
virtual void	start (const CState *initialState)
const CVector< C_INT > &	getRoots () const
virtual bool	isValidProblem (const CCopasiProblem *pProblem)
Static Public Member Functions
static CTrajectoryMethod *	createTrajectoryMethod (CCopasiMethod::SubType subType=CCopasiMethod::deterministic, CTrajectoryProblem *pProblem=NULL)
Protected Member Functions
	CTrajectoryMethod (const CCopasiMethod::SubType &subType, const CCopasiContainer *pParent=NULL)
Protected Attributes
CState *	mpCurrentState
CTrajectoryProblem *	mpProblem
CVector< C_INT >	mRoots

---

Member Enumeration Documentation

enum CTrajectoryMethod::Status

Enumeration value for the return value

Enumerator:

FAILURE
NORMAL
ROOT

---

Constructor & Destructor Documentation

CTrajectoryMethod::CTrajectoryMethod	(	const CCopasiMethod::SubType &	subType,
		const CCopasiContainer *	pParent = NULL
	)		[protected]

Default constructor.

Parameters:

const	CCopasiMethod::SubType & subType
const	CCopasiContainer * pParent (default: NULL)

Default constructor.

CTrajectoryMethod::CTrajectoryMethod	(	const CTrajectoryMethod &	src,
		const CCopasiContainer *	pParent = NULL
	)

Copy constructor.

Parameters:

const CTrajectoryMethod &	src
const	CCopasiContainer * pParent (default: NULL)

Copy constructor.

Parameters:

const CTrajectoryMethod &

src

CTrajectoryMethod::~CTrajectoryMethod

(

)

Destructor.

---

Member Function Documentation

CTrajectoryMethod * CTrajectoryMethod::createTrajectoryMethod	(	CCopasiMethod::SubType	subType = CCopasiMethod::deterministic,
		CTrajectoryProblem *	pProblem = NULL
	)		[static]

Create a trajectory method for a special problem. Note: the returned object has to be released after use with delete a problem is also passed so that the method has a chance to choose an appropriate simulation method.

CTrajectoryMethod class. This class describes the interface to all integration methods. The various method like LSODA or Gillespie have to be derived from this class.

Created for COPASI by Stefan Hoops 2002

const CVector< C_INT > & CTrajectoryMethod::getRoots

(

)

const

Retrieve the roots.

Returns:

const CVector< C_INT > & roots

bool CTrajectoryMethod::isValidProblem

(

const CCopasiProblem *

pProblem

)

[virtual]

Check if the method is suitable for this problem

Returns:

bool suitability of the method

Reimplemented from CCopasiMethod.

Reimplemented in CTrajectoryMethodDsaLsodar, CStochMethod, CTrajAdaptiveSA, CHybridMethodLSODA, CStochDirectMethod, CHybridMethod, and CTauLeapMethod.

void CTrajectoryMethod::setCurrentState

(

CState *

currentState

)

Set a pointer to the current state. This method is used by CTrajectoryTask::process() The results of the simulation are passed via this CState variable

Parameters:

CState *

currentState

void CTrajectoryMethod::setProblem

(

CTrajectoryProblem *

problem

)

Set a pointer to the problem. This method is used by CTrajectory

Parameters:

CTrajectoryProblem *

problem

virtual void CTrajectoryMethod::start

(

const CState *

initialState

)

[virtual]

This instructs the method to prepare for integration starting with the initialState given.

Parameters:

const CState *

initialState

Reimplemented in CTrajectoryMethodDsaLsodar, CLsodaMethod, CStochMethod, CTrajAdaptiveSA, CHybridMethodLSODA, CStochDirectMethod, CHybridMethod, and CTauLeapMethod.

void CTrajectoryMethod::stateChanged

(

)

[virtual]

Inform the trajectory method that the state has changed outside its control

Reimplemented in CTrajectoryMethodDsaLsodar, and CLsodaMethod.

virtual Status CTrajectoryMethod::step

(

const double &

deltaT

)

[virtual]

This instructs the method to calculate a time step of deltaT starting with the current state, i.e., the result of the previous step. The new state (after deltaT) is expected in the current state. The return value is the actual timestep taken.

Parameters:

const double &

deltaT

Returns:

Status status

Reimplemented in CTrajectoryMethodDsaLsodar, CLsodaMethod, CStochMethod, CTrajAdaptiveSA, CHybridMethodLSODA, CStochDirectMethod, CHybridMethod, and CTauLeapMethod.

---

Member Data Documentation

CState* CTrajectoryMethod::mpCurrentState [protected]

A pointer to the current state. This is set from outside with the setState() method and never changed anywhere else. It's used to report the results to the calling TrajectoryTask

CTrajectoryProblem* CTrajectoryMethod::mpProblem [protected]

A pointer to the trajectory problem.

CVector< C_INT > CTrajectoryMethod::mRoots [protected]

Vector containing information on the current roots

---

The documentation for this class was generated from the following files:

• copasi/trajectory/CTrajectoryMethod.h
• copasi/trajectory/CTrajectoryMethod.cpp
