#include <CHybridMethodLSODA.h>

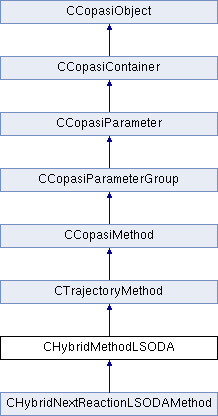

Inheritance diagram for CHybridMethodLSODA:

Classes
struct	Data
Public Member Functions
	CHybridMethodLSODA (const CHybridMethodLSODA &src, const CCopasiContainer *pParent=NULL)
	~CHybridMethodLSODA ()
virtual bool	elevateChildren ()
virtual Status	step (const double &deltaT)
virtual void	start (const CState *initialState)
virtual bool	isValidProblem (const CCopasiProblem *pProblem)
Static Public Member Functions
static CHybridMethodLSODA *	createHybridMethodLSODA ()
Protected Types
enum	metabStatus { LOW = 0, HIGH }
Protected Member Functions
	CHybridMethodLSODA (const CCopasiContainer *pParent=NULL)
void	initMethod (C_FLOAT64 time)
void	cleanup ()
virtual C_FLOAT64	doSingleStep (C_FLOAT64 currentTime, C_FLOAT64 endTime)=0
void	integrateDeterministicPart (C_FLOAT64 ds)
void	calculateDerivative (std::vector< C_FLOAT64 > &deriv)
void	getState (std::vector< C_FLOAT64 > &target)
void	setState (std::vector< C_FLOAT64 > &source)
C_FLOAT64	getDefaultAtol (const CModel *pModel) const
void	evalF (const C_FLOAT64 t, const C_FLOAT64 y, C_FLOAT64 *ydot)
void	getStochTimeAndIndex (C_FLOAT64 &ds, C_INT32 &rIndex)
void	fireReaction (C_INT32 rIndex)
void	updatePriorityQueue (C_INT32 rIndex, C_FLOAT64 time)
C_FLOAT64	generateReactionTime (C_INT32 rIndex)
void	calculateAmu (C_INT32 rIndex)
void	updateTauMu (C_INT32 rIndex, C_FLOAT64 time)
void	setupBalances ()
void	setupDependencyGraph ()
void	setupMetab2React ()
void	setupMetab2ReactPlusModifier ()
void	setupMetab2ReactComplete ()
void	setupPartition ()
void	setupPriorityQueue (C_FLOAT64 startTime=0.0)
void	partitionSystem ()
void	insertDeterministicReaction (C_INT32 rIndex)
void	removeDeterministicReaction (C_INT32 rIndex)
std::set< std::string > *	getDependsOn (C_INT32 rIndex)
std::set< std::string > *	getAffects (C_INT32 rIndex)
std::set< C_INT32 > *	getParticipatesIn (C_INT32 rIndex)
void	outputData (std::ostream &os, C_INT32 mode)
void	outputDebug (std::ostream &os, C_INT32 level)
Static Protected Member Functions
static void	EvalF (const C_INT n, const C_FLOAT64 t, const C_FLOAT64 y, C_FLOAT64 ydot)
static C_INT32	checkModel (CModel *model)
static bool	modelHasAssignments (const CModel *pModel)
Protected Attributes
CVersion	mVersion
CModel *	mpModel
unsigned C_INT32	mNumVariableMetabs
unsigned C_INT32	mFirstMetabIndex
unsigned C_INT32	mMaxSteps
bool	mMaxStepsReached
bool	mUseRandomSeed
unsigned C_INT32	mRandomSeed
C_INT32	mMaxBalance
C_INT32	mMaxIntBeforeStep
bool	mDoCorrection
const CCopasiVectorNS < CReaction > *	mpReactions
CCopasiVector< CMetab > *	mpMetabolites
CMatrix< C_FLOAT64 >	mStoi
std::vector< C_FLOAT64 >	temp
std::vector< C_FLOAT64 >	currentState
std::vector < CHybridLSODAStochFlag >	mReactionFlags
CHybridLSODAStochFlag *	mFirstReactionFlag
std::vector< metabStatus >	mMetabFlags
std::vector< std::vector < CHybridLSODABalance > >	mLocalBalances
std::vector< std::vector < CHybridLSODABalance > >	mLocalSubstrates
C_FLOAT64	mLowerStochLimit
C_FLOAT64	mUpperStochLimit
unsigned C_INT32	mPartitioningInterval
unsigned C_INT32	mStepsAfterPartitionSystem
C_FLOAT64	mStepsize
std::vector< std::set< C_INT32 > >	mMetab2React
std::vector< C_FLOAT64 >	mAmu
std::vector< C_FLOAT64 >	mAmuOld
std::set< C_INT32 >	mUpdateSet
CRandom *	mpRandomGenerator
CDependencyGraph	mDG
CIndexedPriorityQueue	mPQ
bool	mRestartLSODA
CState *	mpState
Data	mData
C_FLOAT64 *	mY
CVector< C_FLOAT64 >	mYdot
C_FLOAT64	mTime
C_FLOAT64	mEndt
C_INT	mLsodaStatus
bool	mReducedModel
C_FLOAT64	mRtol
bool	mDefaultAtol
C_FLOAT64	mAtol
std::ostringstream	mErrorMsg
CLSODA	mLSODA
C_INT	mState
CVector< C_FLOAT64 >	mDWork
CVector< C_INT >	mIWork
C_INT	mJType
std::ofstream	mOutputFile
std::string	mOutputFileName
C_INT32	mOutputCounter
bool	mHasAssignments
Friends
CTrajectoryMethod *	CTrajectoryMethod::createTrajectoryMethod (CCopasiMethod::SubType subType, CTrajectoryProblem *pProblem)

Member Enumeration Documentation

enum CHybridMethodLSODA::metabStatus [protected]

Status of the metabolites. Particle number can be high or low.

Enumerator:

LOW
HIGH

Constructor & Destructor Documentation

CHybridMethodLSODA::CHybridMethodLSODA	(	const CHybridMethodLSODA &	src,
		const CCopasiContainer *	pParent = `NULL`
	)

Copy constructor

Parameters:

const	CHybridMethodLSODA & src
const	CCopasiContainer * pParent (default: NULL)

CHybridMethodLSODA::~CHybridMethodLSODA ( )

Destructor.

CHybridMethodLSODA::CHybridMethodLSODA ( const CCopasiContainer * pParent = NULL ) [protected]

Default constructor.

Parameters:

const CCopasiContainer * pParent (default: NULL)

CHybridMethodLSODA

This class implements an hybrid algorithm for the simulation of a biochemical system over time.

File name: CHybridMethodLSODA.cpp Author: Juergen Pahle Email: juergen.pahle@eml-r.villa-bosch.de

Last change: 09, May 2006

(C) European Media Lab 2003. Default constructor.

Member Function Documentation

void CHybridMethodLSODA::calculateAmu ( C_INT32 rIndex ) [protected]

Calculates an amu value for a given reaction.

Parameters:

rIndex A C_INT32 specifying the reaction to be updated

void CHybridMethodLSODA::calculateDerivative ( std::vector< C_FLOAT64 > & deriv ) [protected]

Calculates the derivative of the system and writes it into the vector deriv. Length of deriv must be mNumVariableMetabs. CAUTION: Only deterministic reactions are taken into account. That is, this is only the derivative of the deterministic part of the system.

Parameters:

deriv A vector reference of length mNumVariableMetabs, into which the derivative is written

C_INT32 CHybridMethodLSODA::checkModel ( CModel * model ) [static, protected]

Test the model if it is proper to perform stochastic simulations on. Several properties are tested (e.g. integer stoichometry, all reactions take place in one compartment only, irreversibility...).

Parameters:

model The model to be checked

Returns:: 1, if hybrid simulation is possible; <0, if an error occured.

Test the model if it is proper to perform stochastic simulations on. Several properties are tested (e.g. integer stoichometry, all reactions take place in one compartment only, irreversibility...).

Returns:: 0, if everything is ok; <0, if an error occured.

void CHybridMethodLSODA::cleanup ( ) [protected]

Cleans up memory, etc.

CHybridMethodLSODA * CHybridMethodLSODA::createHybridMethodLSODA ( ) [static]

Creates a HybridMethod adequate for the problem. (only CHybridNextReactionLSODAMethod so far)

Creates a HybridMethodLSODA adequate for the problem.

virtual C_FLOAT64 CHybridMethodLSODA::doSingleStep	(	C_FLOAT64	currentTime,
		C_FLOAT64	endTime
	)		`[protected, pure virtual]`

Simulates the system over the next interval of time. The current time and the end time of the current step() are given as arguments.

Parameters:

currentTime	A C_FLOAT64 specifying the current time
endTime	A C_FLOAT64 specifying the end time of the step()

Returns:: A C_FLOAT giving the new time

Implemented in CHybridNextReactionLSODAMethod.

bool CHybridMethodLSODA::elevateChildren ( ) [virtual]

This methods must be called to elevate subgroups to derived objects. The default implementation does nothing.

Returns:: bool success

Reimplemented from CCopasiParameterGroup.

void CHybridMethodLSODA::EvalF	(	const C_INT *	n,
		const C_FLOAT64 *	t,
		const C_FLOAT64 *	y,
		C_FLOAT64 *	ydot
	)		`[static, protected]`

void CHybridMethodLSODA::evalF	(	const C_FLOAT64 *	t,
		const C_FLOAT64 *	y,
		C_FLOAT64 *	ydot
	)		`[protected]`

This evaluates the derivatives for the complete model

void CHybridMethodLSODA::fireReaction ( C_INT32 rIndex ) [protected]

Executes the specified reaction in the system once.

Parameters:

rIndex A C_INT32 specifying the index of the reaction, which will be fired.

Executes the specified reaction in the system once.

Parameters:

rIndex	A C_INT32 specifying the index of the reaction, which will be fired.
time	The current time

C_FLOAT64 CHybridMethodLSODA::generateReactionTime ( C_INT32 rIndex ) [protected]

Generates a putative reaction time for the given reaction.

Parameters:

rIndex A C_INT32 specifying the index of the reaction

Returns:: A C_FLOAT64 holding the calculated reaction time

std::set< std::string > * CHybridMethodLSODA::getAffects ( C_INT32 rIndex ) [protected]

Gets the set of metabolites which change number when a given reaction is executed.

Parameters:

rIndex The index of the reaction being executed.

Returns:: The set of affected metabolites.

C_FLOAT64 CHybridMethodLSODA::getDefaultAtol ( const CModel * pModel ) const [protected]

Calculate the default absolute tolerance

Parameters:

const CModel * pModel

Returns:: C_FLOAT64 defaultAtol

std::set< std::string > * CHybridMethodLSODA::getDependsOn ( C_INT32 rIndex ) [protected]

Gets the set of metabolites on which a given reaction depends.

Parameters:

rIndex The index of the reaction being executed.

Returns:: The set of metabolites depended on.

std::set< C_INT32 > * CHybridMethodLSODA::getParticipatesIn ( C_INT32 rIndex ) [protected]

Gets the set of metabolites, which participate in the given reaction either as substrate, product or modifier.

Parameters:

rIndex The index of the reaction being executed.

Returns:: The set of participating metabolites.

void CHybridMethodLSODA::getState ( std::vector< C_FLOAT64 > & target ) [protected]

Gathers the state of the system into the array target. Later on CState should be used for this. Length of the array target must be mNumVariableMetabs.

Parameters:

target A vector reference of length mNumVariableMetabs, into which the state of the system is written

void CHybridMethodLSODA::getStochTimeAndIndex	(	C_FLOAT64 &	ds,
		C_INT32 &	rIndex
	)		`[protected]`

Find the reaction index and the reaction time of the stochastic (!) reaction with the lowest reaction time.

Parameters:

ds	A reference to a C_FLOAT64. The putative reaction time for the first stochastic reaction is written into this variable.
rIndex	A reference to a C_INT32. The index of the first stochastic reaction is written into this variable.

void CHybridMethodLSODA::initMethod ( C_FLOAT64 start_time ) [protected]

Initializes the solver.

Parameters:

time	the current time

Initializes the solver and sets the model to be used.

Parameters:

model A reference to an instance of a CModel

void CHybridMethodLSODA::insertDeterministicReaction ( C_INT32 rIndex ) [protected]

Inserts a new deterministic reaction into the linked list in the vector mReactionFlags.

Parameters:

rIndex A C_INT32 giving the index of the reaction to be inserted into the list of deterministic reactions.

Inserts a new deterministic reaction into the linked list in the array mReactionFlags.

Parameters:

rIndex A C_INT32 giving the index of the reaction to be inserted into the list of deterministic reactions.

void CHybridMethodLSODA::integrateDeterministicPart ( C_FLOAT64 deltaT ) [protected]

Integrates the deterministic reactions of the system over the specified time interval.

Parameters:

ds	A C_FLOAT64 specifying the stepsize.

bool CHybridMethodLSODA::isValidProblem ( const CCopasiProblem * pProblem ) [virtual]

Check if the method is suitable for this problem

Returns:: bool suitability of the method

Reimplemented from CTrajectoryMethod.

bool CHybridMethodLSODA::modelHasAssignments ( const CModel * pModel ) [static, protected]

tests if the model contains a global value with an assignment rule that is used in calculations

void CHybridMethodLSODA::outputData	(	std::ostream &	os,
		C_INT32	mode
	)		`[protected]`

Prints out data on standard output.

Prints out data on standard output. Deprecated.

void CHybridMethodLSODA::outputDebug	(	std::ostream &	os,
		C_INT32	level
	)		`[protected]`

Prints out various data on standard output for debugging purposes.

void CHybridMethodLSODA::partitionSystem ( ) [protected]

Updates the partitioning of the system depending on the particle numbers present.

void CHybridMethodLSODA::removeDeterministicReaction ( C_INT32 rIndex ) [protected]

Removes a deterministic reaction from the linked list in the vector mReactionFlags.

Parameters:

rIndex A C_INT32 giving the index of the reaction to be removed from the list of deterministic reactions.

Removes a deterministic reaction from the linked list in the array mReactionFlags.

Parameters:

rIndex A C_INT32 giving the index of the reaction to be removed from the list of deterministic reactions.

void CHybridMethodLSODA::setState ( std::vector< C_FLOAT64 > & source ) [protected]

Writes the state specified in the array source into the model. Length of the vector source must be mNumVariableMetabs. (Number of non-fixed metabolites in the model).

Parameters:

source A vector reference with length mNumVariableMetabs, holding the state of the system to be set in the model

void CHybridMethodLSODA::setupBalances ( ) [protected]

Sets up an internal representation of the balances for each reaction. This is done in order to be able to deal with fixed metabolites and to avoid a time consuming search for the indices of metabolites in the model.

void CHybridMethodLSODA::setupDependencyGraph ( ) [protected]

Sets up the dependency graph

Sets up the dependency graph.

void CHybridMethodLSODA::setupMetab2React ( ) [protected]

Creates for each metabolite a set of reaction indices. If the metabolite participates in a reaction as substrate or product this reaction is added to the corresponding set.

Creates for each metabolite a set of reaction indices. If the metabolite participates in a reaction as substrate or product (that means: balance != 0) this reaction is added to the corresponding set.

void CHybridMethodLSODA::setupMetab2ReactComplete ( ) [protected]

Creates for each metabolite a set of reaction indices. Each reaction is dependent on each metabolite resulting in a complete switch.

void CHybridMethodLSODA::setupMetab2ReactPlusModifier ( ) [protected]

Creates for each metabolite a set of reaction indices. If the metabolite participates in a reaction as substrate, product or modifier this reaction is added to the corresponding set.

void CHybridMethodLSODA::setupPartition ( ) [protected]

Creates an initial partitioning of the system. Deterministic and stochastic reactions are determined. The array mStochReactions is initialized.

Creates an initial partitioning of the system. Deterministic and stochastic reactions are determined. The vector mReactionFlags and the vector mMetabFlags are initialized.

void CHybridMethodLSODA::setupPriorityQueue ( C_FLOAT64 startTime = 0.0 ) [protected]

Sets up the priority queue.

Parameters:

startTime The time at which the simulation starts.

void CHybridMethodLSODA::start ( const CState * initialState ) [virtual]

This instructs the method to prepare for integration starting with the initialState given.

Parameters:

const CState * initialState

Reimplemented from CTrajectoryMethod.

CTrajectoryMethod::Status CHybridMethodLSODA::step ( const double & deltaT ) [virtual]

This instructs the method to calculate a time step of deltaT starting with the current state, i.e., the result of the previous step. The new state (after deltaT) is expected in the current state. The return value is the actual timestep taken.

Parameters:

const double & deltaT

Returns:: Status status

Reimplemented from CTrajectoryMethod.

void CHybridMethodLSODA::updatePriorityQueue	(	C_INT32	rIndex,
		C_FLOAT64	time
	)		`[protected]`

Updates the priority queue.

Parameters:

rIndex	A C_INT32 giving the index of the fired reaction
time	A C_FLOAT64 holding the time taken by this reaction

Updates the priority queue.

Parameters:

rIndex	A C_INT32 giving the index of the fired reaction (-1, if no stochastic reaction has fired)
time	A C_FLOAT64 holding the current time

void CHybridMethodLSODA::updateTauMu	(	C_INT32	rIndex,
		C_FLOAT64	time
	)		`[protected]`

Updates the putative reaction time of a stochastic reaction in the priority queue. The corresponding amu and amu_old must be set prior to the call of this method.

Parameters:

rIndex	A C_INT32 specifying the index of the reaction
time	A C_FLOAT64 specifying the current time

Updates the putative reaction time of a stochastic reaction in the priority queue. The corresponding amu and amu_old must be set prior to the call of this method.

Parameters:

rIndex A C_INT32 specifying the index of the reaction

Friends And Related Function Documentation

CTrajectoryMethod* CTrajectoryMethod::createTrajectoryMethod	(	CCopasiMethod::SubType	subType,
		CTrajectoryProblem *	pProblem
	)		`[friend]`

Member Data Documentation

std::vector<C_FLOAT64> CHybridMethodLSODA::currentState [protected]

std::vector<C_FLOAT64> CHybridMethodLSODA::mAmu [protected]

The propensities of the stochastic reactions.

std::vector<C_FLOAT64> CHybridMethodLSODA::mAmuOld [protected]

C_FLOAT64 CHybridMethodLSODA::mAtol [protected]

Absolute tolerance.

Data CHybridMethodLSODA::mData [protected]

mData.dim is the dimension of the ODE system. mData.pMethod contains CLsodaMethod * this to be used in the static method EvalF

bool CHybridMethodLSODA::mDefaultAtol [protected]

CDependencyGraph CHybridMethodLSODA::mDG [protected]

The graph of reactions and their dependent reactions. When a reaction is executed, the propensities for each of its dependents must be updated.

bool CHybridMethodLSODA::mDoCorrection [protected]

indicates if the correction N^2 -> N*(N-1) should be performed

CVector< C_FLOAT64 > CHybridMethodLSODA::mDWork [protected]

C_FLOAT64 CHybridMethodLSODA::mEndt [protected]

Requested end time.

std::ostringstream CHybridMethodLSODA::mErrorMsg [protected]

unsigned C_INT32 CHybridMethodLSODA::mFirstMetabIndex [protected]

index of the first metab in CState

CHybridLSODAStochFlag* CHybridMethodLSODA::mFirstReactionFlag [protected]

bool CHybridMethodLSODA::mHasAssignments [protected]

Indicates whether the model has global quantities with assignment rules. If it has, we will use a less efficient way to update the model state to handle this.

CVector< C_INT > CHybridMethodLSODA::mIWork [protected]

C_INT CHybridMethodLSODA::mJType [protected]

std::vector<std::vector <CHybridLSODABalance> > CHybridMethodLSODA::mLocalBalances [protected]

Internal representation of the balances of each reaction. The index of each metabolite in the reaction is provided.

std::vector<std::vector <CHybridLSODABalance> > CHybridMethodLSODA::mLocalSubstrates [protected]

Internal representation of the substrates of each reaction. The index of each substrate-metabolite is provided.

C_FLOAT64 CHybridMethodLSODA::mLowerStochLimit [protected]

Limit for particle numbers. If a particle number is < StochLimit the corresponding reactions must be simulated stochastically.

CLSODA CHybridMethodLSODA::mLSODA [protected]

C_INT CHybridMethodLSODA::mLsodaStatus [protected]

LSODA state.

C_INT32 CHybridMethodLSODA::mMaxBalance [protected]

maximal increase of a particle number in one step.

C_INT32 CHybridMethodLSODA::mMaxIntBeforeStep [protected]

This is set to maxint - mMaxSteps*mMaxBalance

unsigned C_INT32 CHybridMethodLSODA::mMaxSteps [protected]

Max number of doSingleStep() per step()

bool CHybridMethodLSODA::mMaxStepsReached [protected]

std::vector<std::set <C_INT32> > CHybridMethodLSODA::mMetab2React [protected]

Vector of relations between metabolites to reactions.

std::vector<metabStatus> CHybridMethodLSODA::mMetabFlags [protected]

Vector holding information on the status of metabolites. They can have low or high particle numbers.

unsigned C_INT32 CHybridMethodLSODA::mNumVariableMetabs [protected]

Dimension of the system. Total number of metabolites.

C_INT32 CHybridMethodLSODA::mOutputCounter [protected]

Output counter.

std::ofstream CHybridMethodLSODA::mOutputFile [protected]

File output stream to write data.

std::string CHybridMethodLSODA::mOutputFileName [protected]

Output filename.

unsigned C_INT32 CHybridMethodLSODA::mPartitioningInterval [protected]

The system gets repartitioned after this number of elementary steps.

CCopasiVector<CMetab>* CHybridMethodLSODA::mpMetabolites [protected]

A pointer to the metabolites of the model.

CModel* CHybridMethodLSODA::mpModel [protected]

Pointer to the model

CIndexedPriorityQueue CHybridMethodLSODA::mPQ [protected]

The set of putative stochastic (!) reactions and associated times at which each reaction occurs. This is represented as a priority queue, sorted by the reaction time. This heap changes dynamically as stochastic reactions become deterministic (delete this reaction from the queue) or vice versa (insert a new reaction into the queue).

CRandom* CHybridMethodLSODA::mpRandomGenerator [protected]

The random number generator.

const CCopasiVectorNS<CReaction>* CHybridMethodLSODA::mpReactions [protected]

A pointer to the reactions of the model.

CState* CHybridMethodLSODA::mpState [protected]

A pointer to the current state in complete model view.

unsigned C_INT32 CHybridMethodLSODA::mRandomSeed [protected]

The random seed to use.

std::vector<CHybridLSODAStochFlag> CHybridMethodLSODA::mReactionFlags [protected]

Vector to hold information about how many metabolites of a reaction have low particle numbers. If no metabolite of one reaction has low particle numbers this reaction will be simulated det.

bool CHybridMethodLSODA::mReducedModel [protected]

bool CHybridMethodLSODA::mRestartLSODA [protected]

this flag indicates whether the next LSODA call needs to reinitialize the integrater (if the partitioning has changed or a stochastic reaction was fired)

C_FLOAT64 CHybridMethodLSODA::mRtol [protected]

Relative tolerance.

C_INT CHybridMethodLSODA::mState [protected]

unsigned C_INT32 CHybridMethodLSODA::mStepsAfterPartitionSystem [protected]

Number of elementary steps after the last partitioning.

C_FLOAT64 CHybridMethodLSODA::mStepsize [protected]

Partitioning stepsize

CMatrix<C_FLOAT64> CHybridMethodLSODA::mStoi [protected]

The stoichometry matrix of the model.

C_FLOAT64 CHybridMethodLSODA::mTime [protected]

Current time.

std::set<C_INT32> CHybridMethodLSODA::mUpdateSet [protected]
