#include <CILDMMethod.h>

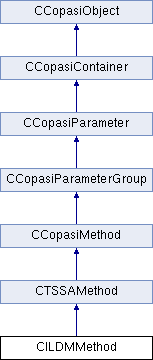

Inheritance diagram for CILDMMethod:

Public Member Functions
	CILDMMethod (const CILDMMethod &src, const CCopasiContainer *pParent=NULL)
	~CILDMMethod ()
virtual void	initializeParameter ()
virtual void	step (const double &deltaT)
virtual void	start (const CState *initialState)
void	newton (C_FLOAT64 *ys, C_INT &slow, C_INT &info)
void	transformation_norm (C_INT &slow, C_INT &info)
void	deuflhard (C_INT &slow, C_INT &info)
const CArrayAnnotation *	getVslowPrintAnn () const
const CArrayAnnotation *	getVslowSpacePrintAnn () const
const CArrayAnnotation *	getVfastSpacePrintAnn () const
const CArrayAnnotation *	getVslowMetabPrintAnn () const
const CArrayAnnotation *	getReacSlowSpacePrintAnn () const
const CArrayAnnotation *	getTMP1PrintAnn () const
const CArrayAnnotation *	getTMP2PrintAnn () const
const CArrayAnnotation *	getTMP3PrintAnn () const
void	setVectors (int slowMode)
void	emptyVectors ()
void	createAnnotationsM ()
bool	setAnnotationM (int step)
void	printResult (std::ostream *ostream) const
Public Attributes
CVector< C_FLOAT64 >	mReacSlowSpace
CMatrix< C_FLOAT64 >	mTMP1
CMatrix< C_FLOAT64 >	mTMP2
CMatrix< C_FLOAT64 >	mTMP3
std::vector< CMatrix< C_FLOAT64 > >	mVec_mVslow
std::vector< CMatrix< C_FLOAT64 > >	mVec_mVslowMetab
std::vector< CVector< C_FLOAT64 > >	mVec_mVslowSpace
std::vector< CVector< C_FLOAT64 > >	mVec_mVfastSpace
std::vector< CVector< C_FLOAT64 > >	mVec_mReacSlowSpace
std::vector< CMatrix< C_FLOAT64 > >	mVec_mTMP1
std::vector< CMatrix< C_FLOAT64 > >	mVec_mTMP2
std::vector< CMatrix< C_FLOAT64 > >	mVec_mTMP3
CArrayAnnotation *	pVslowPrintAnn
CArrayAnnotation *	pVslowMetabPrintAnn
CArrayAnnotation *	pVslowSpacePrintAnn
CArrayAnnotation *	pVfastSpacePrintAnn
CArrayAnnotation *	pReacSlowSpacePrintAnn
CArrayAnnotation *	pTMP1PrintAnn
CArrayAnnotation *	pTMP2PrintAnn
CArrayAnnotation *	pTMP3PrintAnn
CArrayAnnotation *	pTmp1
CArrayAnnotation *	pTmp2
CArrayAnnotation *	pTmp3
CArrayAnnotation *	pTmp4
CArrayAnnotation *	pTmp5
CArrayAnnotation *	pTMP1
CArrayAnnotation *	pTMP2
CArrayAnnotation *	pTMP3
CMatrix< C_FLOAT64 >	mVslowPrint
CMatrix< C_FLOAT64 >	mVslowSpacePrint
CMatrix< C_FLOAT64 >	mVfastSpacePrint
CMatrix< C_FLOAT64 >	mVslowMetabPrint
CMatrix< C_FLOAT64 >	mReacSlowSpacePrint
CMatrix< C_FLOAT64 >	mTMP1Print
CMatrix< C_FLOAT64 >	mTMP2Print
CMatrix< C_FLOAT64 >	mTMP3Print
Friends
CTSSAMethod *	CTSSAMethod::createTSSAMethod (CCopasiMethod::SubType subType, CTSSAProblem *pProblem)

Constructor & Destructor Documentation

CILDMMethod::CILDMMethod	(	const CILDMMethod &	src,
		const CCopasiContainer *	pParent = `NULL`
	)

Copy constructor.

Parameters:

const CILDMMethod &	src
const	CCopasiContainer * pParent (default: NULL)

CILDMMethod::~CILDMMethod ( )

Destructor.

Member Function Documentation

void CILDMMethod::createAnnotationsM ( )

create the CArraAnnotations for every ILDM-tab in the CQTSSAResultSubWidget input for each CArraAnnotations is a seperate CMatrix

Create the CArraAnnotations for every ILDM-tab in the CQTSSAResultSubWidget. Input for each CArraAnnotations is a seperate CMatrix.

Reimplemented from CTSSAMethod.

void CILDMMethod::deuflhard	(	C_INT &	slow,
		C_INT &	info
	)

Deuflhard Iteration: Prove Deuflhard criteria, find consistent initial value for DAE output: info - if Deuflhard is satisfied for given slow; transformation matrices mTd and mTdinverse

NEWTON: Looking for consistent initial value for DAE system Output: mCfast, info

void CILDMMethod::emptyVectors ( )

empty every vector to be able to fill them with new values for a new calculation also nullify the step counter

Empty every vector to be able to fill them with new values for a new calculation. Also nullify the step counter.

Reimplemented from CTSSAMethod.

const CArrayAnnotation* CILDMMethod::getReacSlowSpacePrintAnn ( ) const [inline]

const CArrayAnnotation* CILDMMethod::getTMP1PrintAnn ( ) const [inline]

const CArrayAnnotation* CILDMMethod::getTMP2PrintAnn ( ) const [inline]

const CArrayAnnotation* CILDMMethod::getTMP3PrintAnn ( ) const [inline]

const CArrayAnnotation* CILDMMethod::getVfastSpacePrintAnn ( ) const [inline]

const CArrayAnnotation* CILDMMethod::getVslowMetabPrintAnn ( ) const [inline]

const CArrayAnnotation* CILDMMethod::getVslowPrintAnn ( ) const [inline]

return CArrayAnnotation for visualization in ILDM-tab in the CQTSSAResultSubWidget

const CArrayAnnotation* CILDMMethod::getVslowSpacePrintAnn ( ) const [inline]

void CILDMMethod::initializeParameter ( ) [virtual]

Intialize the method parameter

Reimplemented from CTSSAMethod.

void CILDMMethod::newton	(	C_FLOAT64 *	ys,
		C_INT &	slow,
		C_INT &	info
	)

Newton: Looking for consistent initial value for DAE system Output: mCfast, info

void CILDMMethod::printResult ( std::ostream * ostream ) const [virtual]

print of the standart report sequence for ILDM Method

Parameters:

std::ostream * ostream

Reimplemented from CCopasiMethod.

bool CILDMMethod::setAnnotationM ( int step ) [virtual]

set the every CArrayAnnotation for the requested step set the desription of CArayAnnotation for both dimensions

Set the every CArrayAnnotation for the requested step. Set also the desription of CArayAnnotation for both dimensions:

dimension description could consists of some std::srings some strings contain the Time Scale values for requested step
dimension description could consists of arrays of CommonNames

Implements CTSSAMethod.

void CILDMMethod::setVectors ( int slowMode )

upgrade all vectors with values from actually calculalion for current step

Reimplemented from CTSSAMethod.

void CILDMMethod::start ( const CState * initialState ) [virtual]

This instructs the method to prepare for integration starting with the initialState given.

Parameters:

const CState * initialState

Reimplemented from CTSSAMethod.

void CILDMMethod::step ( const double & deltaT ) [virtual]

This instructs the method to calculate a time step of deltaT starting with the current state, i.e., the result of the previous step. The new state (after deltaT) is expected in the current state. The return value is the actual timestep taken.

Parameters:

const double & deltaT

Schur Decomposition of Jacobian (reordered). Output: mQ - transformation matrix mR - block upper triangular matrix (with ordered eigenvalues)

Classical ILDM iterations. The number of slow variables is decreased until the Deuflhard criterium holds

Solution of Sylvester equation for given slow, mQ,mR Output: mTd, mTdinverse and mQz (mQz is used later for newton iterations)

Deuflhard Iteration: Prove Deuflhard criteria, find consistent initial value for DAE output: info - if Deuflhard is satisfied for this slow; transformation matrices mTd and mTdinverse

end of iterations to find the number of slow modes

Schur Decomposition of Jacobian (with another sorting: from fast to slow). Output: mQ_desc - transformation matrix mR_desc - block upper triangular matrix (with ordered eigenvalues)

This part corresponds to the investigation of fast and slow reactions. In development at the moment. To activate the calculations take flag_develop = 0;

Reimplemented from CTSSAMethod.
