#include <CTSSAMethod.h>

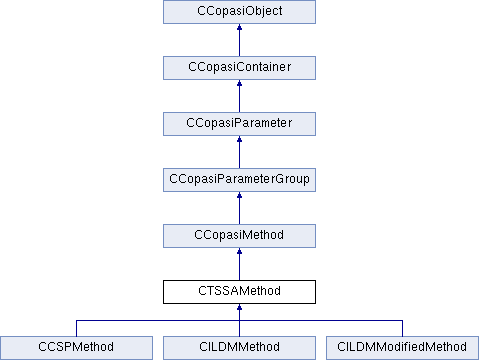

Inheritance diagram for CTSSAMethod:

Classes
struct	Data
Public Member Functions
	CTSSAMethod (const CTSSAMethod &src, const CCopasiContainer *pParent=NULL)
	~CTSSAMethod ()
const std::vector< std::string >	getTableName () const
const CArrayAnnotation *	getTable (std::string name)
virtual bool	setAnnotationM (int s)=0
void	setCurrentState (CState *currentState)
void	setProblem (CTSSAProblem *problem)
virtual void	step (const double &deltaT)
virtual void	start (const CState *initialState)
virtual bool	isValidProblem (const CCopasiProblem *pProblem)
virtual void	initializeParameter ()
CVector< C_FLOAT64 >	getVec_TimeScale (int step)
C_FLOAT64	returnCurrentTime (int step)
void	setVectors (int slowMode)
void	emptyVectors ()
void	createAnnotationsM ()
Static Public Member Functions
static CTSSAMethod *	createTSSAMethod (CCopasiMethod::SubType subType=CCopasiMethod::unset, CTSSAProblem *pProblem=NULL)
Public Attributes
std::map< std::string, CArrayAnnotation * >	mapTableToName
std::vector< std::string >	tableNames
std::vector< int >	mVec_SlowModes
std::vector< C_FLOAT64 >	mCurrentTime
std::vector< CVector< C_FLOAT64 > >	mVec_TimeScale
int	mCurrentStep
Protected Member Functions
	CTSSAMethod (const CCopasiMethod::SubType &subType, const CCopasiContainer *pParent=NULL)
void	initializeIntegrationsParameter ()
bool	elevateChildren ()
void	integrationStep (const double &deltaT)
void	integrationMethodStart (const CState *initialState)
void	initializeAtol ()
void	evalF (const C_FLOAT64 t, const C_FLOAT64 y, C_FLOAT64 *ydot)
void	schur (C_INT &info)
void	schur_desc (C_INT &info)
void	sylvester (C_INT slow, C_INT &info)
void	map_index (C_FLOAT64 eval_r, C_INT index, const C_INT &dim)
void	map_index_desc (C_FLOAT64 eval_r, C_INT index, const C_INT &dim)
void	update_nid (C_INT index, C_INT nid, const C_INT &dim)
void	update_pid (C_INT index, C_INT pid, const C_INT &dim)
void	calculateDerivativesX (C_FLOAT64 X1, C_FLOAT64 Y1)
void	mat_anal_mod (C_INT &slow)
void	mat_anal_metab (C_INT &slow)
void	mat_anal_mod_space (C_INT &slow)
void	mat_anal_fast_space (C_INT &slow)
void	mat_anal_fast_space_thomas (C_INT &slow)
double	orthog (C_INT &number1, C_INT &number2)
Static Protected Member Functions
static void	EvalF (const C_INT n, const C_FLOAT64 t, const C_FLOAT64 y, C_FLOAT64 ydot)
Protected Attributes
CState *	mpCurrentState
CTSSAProblem *	mpProblem
CState *	mpState
Data	mData
C_FLOAT64 *	mY
CVector< C_FLOAT64 >	mYdot
CVector< C_FLOAT64 >	mY_initial
C_FLOAT64	mTime
CMatrix< C_FLOAT64 >	mJacobian
CMatrix< C_FLOAT64 >	mJacobian_initial
CMatrix< C_FLOAT64 >	mQ
CMatrix< C_FLOAT64 >	mQ_desc
CMatrix< C_FLOAT64 >	mR
CMatrix< C_FLOAT64 >	mR_desc
CMatrix< C_FLOAT64 >	mTd
CMatrix< C_FLOAT64 >	mTdInverse
CMatrix< C_FLOAT64 >	mQz
CMatrix< C_FLOAT64 >	mTd_save
CMatrix< C_FLOAT64 >	mTdInverse_save
CVector< C_FLOAT64 >	mCfast
CVector< C_FLOAT64 >	mY_cons
CMatrix< C_FLOAT64 >	mVslow
CMatrix< C_FLOAT64 >	mVslow_metab
CVector< C_FLOAT64 >	mVslow_space
CVector< C_FLOAT64 >	mVfast_space
C_INT	mSlow
C_INT	mLsodaStatus
bool	mReducedModel
C_FLOAT64	mRtol
CVector< C_FLOAT64 >	mAtol
std::ostringstream	mErrorMsg
CLSODA	mLSODA
C_INT	mState
CVector< C_FLOAT64 >	mDWork
CVector< C_INT >	mIWork
C_INT	mJType
CModel *	mpModel
C_FLOAT64	mDtol
C_FLOAT64	mEPS

Constructor & Destructor Documentation

CTSSAMethod::CTSSAMethod	(	const CCopasiMethod::SubType &	subType,
		const CCopasiContainer *	pParent = `NULL`
	)		`[protected]`

Default constructor.

Parameters:

const	CCopasiMethod::SubType & subType
const	CCopasiContainer * pParent (default: NULL)

Default constructor.

CTSSAMethod::CTSSAMethod	(	const CTSSAMethod &	src,
		const CCopasiContainer *	pParent = `NULL`
	)

Copy constructor.

Parameters:

const CTSSAMethod &	src
const	CCopasiContainer * pParent (default: NULL)

Copy constructor.

Parameters:

const CTSSAMethod & src

CTSSAMethod::~CTSSAMethod ( )

Destructor.

Member Function Documentation

void CTSSAMethod::calculateDerivativesX	(	C_FLOAT64 *	X1,
		C_FLOAT64 *	Y1
	)		`[protected]`

void CTSSAMethod::createAnnotationsM ( )

create the CArraAnnotations for every ILDM-tab in the CQTSSAResultSubWidget input for each CArraAnnotations is a seperate CMatrix

Create the CArraAnnotations for every ILDM-tab in the CQTSSAResultSubWidget. Input for each CArraAnnotations is a separate CMatrix.

Reimplemented in CCSPMethod, CILDMMethod, and CILDMModifiedMethod.

CTSSAMethod * CTSSAMethod::createTSSAMethod	(	CCopasiMethod::SubType	subType = `CCopasiMethod::unset`,
		CTSSAProblem *	pProblem = `NULL`
	)		`[static]`

Create a time scale separation analysis method for a special problem. Note: the returned object has to be released after use with delete a problem is also passed so that the method has a chance to choose an appropriate simulation method.

CTSSAMethod class. This class describes the interface to all time scale separation analysis methods. The variaous method like ILDM or CSP have to be derived from this class.

bool CTSSAMethod::elevateChildren ( ) [protected, virtual]

This methods must be called to elevate subgroups to derived objects. The default implementation does nothing.

Returns:: bool success

Reimplemented from CCopasiParameterGroup.

void CTSSAMethod::emptyVectors ( )

empty every vector to be able to fill them with new values for a new calculation also nullify the step counter

Empty every vector to be able to fill them with new values for a new calculation. Also nullify the step counter.

Reimplemented in CCSPMethod, CILDMMethod, and CILDMModifiedMethod.

void CTSSAMethod::EvalF	(	const C_INT *	n,
		const C_FLOAT64 *	t,
		const C_FLOAT64 *	y,
		C_FLOAT64 *	ydot
	)		`[static, protected]`

void CTSSAMethod::evalF	(	const C_FLOAT64 *	t,
		const C_FLOAT64 *	y,
		C_FLOAT64 *	ydot
	)		`[protected]`

This evaluates the derivatives

const CArrayAnnotation* CTSSAMethod::getTable ( std::string name ) [inline]

const std::vector<std::string> CTSSAMethod::getTableName ( ) const [inline]

CVector< C_FLOAT64 > CTSSAMethod::getVec_TimeScale ( int step )

return mVec_TimeScale for visualization in ILDM-tab in the CQTSSAResultSubWidget

void CTSSAMethod::initializeAtol ( ) [protected]

Calculate the individual absolute tolerance

void CTSSAMethod::initializeIntegrationsParameter ( ) [protected]

Intialize integration method parameters

void CTSSAMethod::initializeParameter ( ) [virtual]

Intialize the method parameter

Reimplemented in CCSPMethod, CILDMModifiedMethod, and CILDMMethod.

void CTSSAMethod::integrationMethodStart ( const CState * initialState ) [protected]

This instructs the method to prepare for integration starting with the initialState given.

Parameters:

const CState * initialState

void CTSSAMethod::integrationStep ( const double & deltaT ) [protected]

This instructs the method to calculate a time step of deltaT starting with the current state, i.e., the result of the previous step. The new state (after deltaT) is expected in the current state. The return value is the actual timestep taken.

Parameters:

const double & deltaT

bool CTSSAMethod::isValidProblem ( const CCopasiProblem * pProblem ) [virtual]

Check if the method is suitable for this problem

Returns:: bool suitability of the method

Reimplemented from CCopasiMethod.

void CTSSAMethod::map_index	(	C_FLOAT64 *	eval_r,
		C_INT *	index,
		const C_INT &	dim
	)		`[protected]`

MAP_INDEX used for sorting of SchurDecompostion

void CTSSAMethod::map_index_desc	(	C_FLOAT64 *	eval_r,
		C_INT *	index,
		const C_INT &	dim
	)		`[protected]`

This is the test only. We try to reorder the Schur matrix from slowest mode (on the bottom) to the fastest (on the top) The function map_index_desc() is used on the end of schur() in order to produce the orthogonal slow space

void CTSSAMethod::mat_anal_fast_space ( C_INT & slow ) [protected]

MAT_ANAL_fast_space: mathematical analysis of matrices mTdInverse for post-analysis

void CTSSAMethod::mat_anal_fast_space_thomas ( C_INT & slow ) [protected]

MAT_ANAL_fast_space: mathematical analysis of matrices mTdInverse for post-analysis

void CTSSAMethod::mat_anal_metab ( C_INT & slow ) [protected]

MAT_ANAL_METAB: mathematical analysis of matrices mTd for post-analysis

void CTSSAMethod::mat_anal_mod ( C_INT & slow ) [protected]

This is not very elegant solution. But I don't know the better one.

MAT_ANAL_MOD: mathematical analysis of matrices mTdInverse for post-analysis

void CTSSAMethod::mat_anal_mod_space ( C_INT & slow ) [protected]

MAT_ANAL_MOD_space: mathematical analysis of matrices mTdInverse for post-analysis

double CTSSAMethod::orthog	(	C_INT &	number1,
		C_INT &	number2
	)		`[protected]`

C_FLOAT64 CTSSAMethod::returnCurrentTime ( int step ) [inline]

return required time-value from timevector

void CTSSAMethod::schur ( C_INT & info ) [protected]

SCHUR: Schur Decomposition of Jacobian (reordered). Output: mQ - transformation matrix mR - block upper triangular matrix (with ordered eigenvalues)

void CTSSAMethod::schur_desc ( C_INT & info ) [protected]

SCHUR_desc: Schur Decomposition of Jacobian (reordered). Output: mQ_desc - transformation matrix mR_desc - block upper triangular matrix (with ordered eigenvalues)

virtual bool CTSSAMethod::setAnnotationM ( int s ) [pure virtual]

Implemented in CCSPMethod, CILDMMethod, and CILDMModifiedMethod.

void CTSSAMethod::setCurrentState ( CState * currentState )

Set a pointer to the current state. This method is used by CTSSATask::process() The results of the simulation are passed via this CState variable

Parameters:

CState * currentState

void CTSSAMethod::setProblem ( CTSSAProblem * problem )

Set a pointer to the problem. This method is used by CTSSA

Parameters:

CTSSAProblem * problem

void CTSSAMethod::setVectors ( int slowMode )

upgrade all vectors with values from actually calculalion for current step

upgrade all vectors with values from actually calculation for current step

Reimplemented in CCSPMethod, CILDMMethod, and CILDMModifiedMethod.

virtual void CTSSAMethod::start ( const CState * initialState ) [virtual]

This instructs the method to prepare for integration starting with the initialState given.

Parameters:

const CState * initialState

Reimplemented in CCSPMethod, CILDMModifiedMethod, and CILDMMethod.

void CTSSAMethod::step ( const double & deltaT ) [virtual]

This instructs the method to calculate a time step of deltaT starting with the current state, i.e., the result of the previous step. The new state (after deltaT) is expected in the current state. The return value is the actual timestep taken.

Parameters:

const double & deltaT

This instructs the method to calculate a a time step of deltaT starting with the current state, i.e., the result of the previous step. The new state (after deltaT) is expected in the current state. The return value is the actual timestep taken.

Parameters:

const double & deltaT

This instructs the method to calculate a a time step of deltaT starting with the current state, i.e., the result of the previous step. The new state (after deltaT) is expected in the current state. The return value is the actual time step taken.

Parameters:

const double & deltaT

Reimplemented in CCSPMethod, CILDMModifiedMethod, and CILDMMethod.

void CTSSAMethod::sylvester	(	C_INT	slow,
		C_INT &	info
	)		`[protected]`

SYLVESTER: Solution of Sylvester equation for given slow, mQ,mR Output: mTd, mTdinverse, mQz (is used later for Newton iterations)

void CTSSAMethod::update_nid	(	C_INT *	index,
		C_INT *	nid,
		const C_INT &	dim
	)		`[protected]`

UPDATE_NID: used for sorting of SchurDecompostion

void CTSSAMethod::update_pid	(	C_INT *	index,
		C_INT *	pid,
		const C_INT &	dim
	)		`[protected]`

UPDATE_PID: used for sorting of SchurDecompostion

Member Data Documentation

std::map< std::string, CArrayAnnotation* > CTSSAMethod::mapTableToName

CVector< C_FLOAT64 > CTSSAMethod::mAtol [protected]

A vector of absolute tolerances.

CVector<C_FLOAT64> CTSSAMethod::mCfast [protected]

int CTSSAMethod::mCurrentStep

stepcounter

std::vector< C_FLOAT64 > CTSSAMethod::mCurrentTime

Data CTSSAMethod::mData [protected]

mData.dim is the dimension of the ODE system.

C_FLOAT64 CTSSAMethod::mDtol [protected]

Tolerance for Deuflhard criterium

CVector< C_FLOAT64 > CTSSAMethod::mDWork [protected]

LSODA C_FLOAT64 work area

C_FLOAT64 CTSSAMethod::mEPS [protected]

std::ostringstream CTSSAMethod::mErrorMsg [protected]

Stream to capture LSODA error messages

CVector< C_INT > CTSSAMethod::mIWork [protected]

LSODA C_INT work area

CMatrix<C_FLOAT64> CTSSAMethod::mJacobian [protected]

Jacobian matrix

CMatrix<C_FLOAT64> CTSSAMethod::mJacobian_initial [protected]

Jacobian matrix at initial point

C_INT CTSSAMethod::mJType [protected]

The way LSODA calculates the jacobian

CLSODA CTSSAMethod::mLSODA [protected]

The LSODA integrator

C_INT CTSSAMethod::mLsodaStatus [protected]

LSODA state.

CState* CTSSAMethod::mpCurrentState [protected]

A pointer to the current state. This is set from outside with the setState() method and never changed anywhere else. It�s used to report the results to the calling TSSATask

CModel* CTSSAMethod::mpModel [protected]

A pointer to the model

CTSSAProblem* CTSSAMethod::mpProblem [protected]

A pointer to the time scale separation analysis problem.

CState* CTSSAMethod::mpState [protected]

A pointer to the current state in complete model view.

CMatrix<C_FLOAT64> CTSSAMethod::mQ [protected]

CMatrix<C_FLOAT64> CTSSAMethod::mQ_desc [protected]

CMatrix<C_FLOAT64> CTSSAMethod::mQz [protected]

CMatrix<C_FLOAT64> CTSSAMethod::mR [protected]

CMatrix<C_FLOAT64> CTSSAMethod::mR_desc [protected]

bool CTSSAMethod::mReducedModel [protected]
